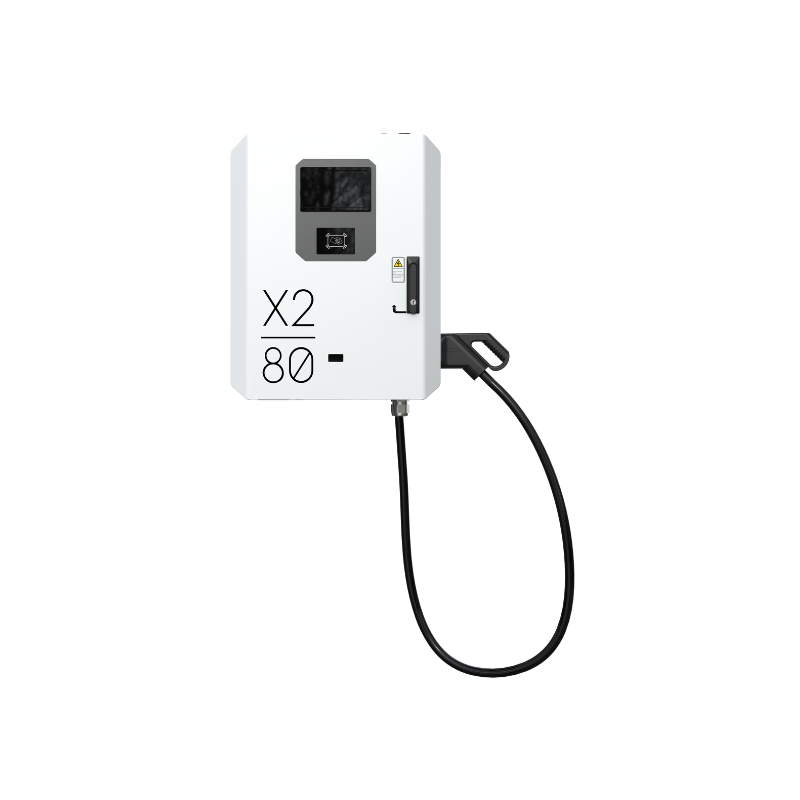

X280 DC Charger | 30kW | Single CCS2 Port | 4.5m Cable

Name: X280 DC Charger | 30kW | Single CCS2 Port | 4.5m Cable
Brand: X280
SKU: GRMDC030401019
Availability: InStock

Barcode: X280-F1-EU30-C

$10,000.00 (Ex.GST)

RRP (Ex.GST): $10,000.00

Delivery time varies; see Product Detail Page

Product Overview

Experience the next level of power and efficiency with the X280 30kW. Engineered for demanding commercial and industrial applications, the X280 delivers robust performance, reliability, and advanced features to meet your energy needs.

This product is available through our special-order service. Estimated lead time: **13 weeks**, including sourcing, testing, and configuration for your needs before dispatch. Lead times may vary based on order quantity, supplier availability and handling requirements. We will keep you updated throughout the process.

Why Choose the X280 30kW?

Reliable, high-capacity performance
Advanced safety and monitoring features
Easy installation and maintenance
Backed by comprehensive technical support

Upgrade your power solution with the X280 30kW—where performance meets reliability.

Instructions & Datasheets

Installation Manual

Maintenance Manual

Spec Sheet

Backend Configuration Manual

Debugging Tool

Error code Troubleshoot

Features

High Power Output: With a maximum capacity of 30kW, the X280 is designed to handle intensive workloads, ensuring consistent and reliable energy delivery.
Advanced Technology: Equipped with state-of-the-art control systems for optimal efficiency, safety, and ease of use.
Durable Construction: Built with premium materials and a rugged enclosure, the X280 is suitable for both indoor and outdoor installations, offering long-lasting performance in any environment.
User-Friendly Interface: Intuitive controls and a clear display make operation and monitoring straightforward for all users.
Flexible Integration: Compatible with a wide range of systems and applications, the X280 seamlessly integrates into your existing infrastructure.

Specifications

Mechanical & Environmental Specs

Cable Length: 4.5m
Dimensions (W×D×H): 600mm × 260mm × 750mm
Net Weight: 71kg
Protection: IP54, IK10
Storage Temperature: -40~70℃
Operating Temperature: -25~50℃
Operating Humidity: 5%~95% (no condensation)
Altitude: ≤2000m
Cooling: Forced air cooling

Electrical Specifications

Rated Power: 30kW
AC Input Voltage Range: 380V (323V–460V)
AC Input Current Range: 48A (0–58A)
Grid Types: TN-S, TN-C-S, TT
Grid Connection: 3P+N+PE
DC Output Options: CCS2
DC Output Voltage Range: 150V–1000V
DC Output Current: 0–100A
Peak Efficiency: ≥95%
Power Factor (full load): ≥0.99
THDi: ≤5%

User Interface & Control

Authentication: APP, QR Code (optional), RFID
Display: 7-inch touch LCD
Connectivity: Ethernet/4G
Communication Protocol: OCPP 1.6J
Vehicle & Charger Communication: ISO 15118 / DIN 70121 - 2014

Returns & Warranty

DC Charger Warranty Summary:

Coverage: 31 months starting from the date of the bill of lading for each order placed.
Exclusions: Damage from misuse, unauthorized repairs, wear and tear, or consumable parts.

Read the JET Charge returns policy here.

Shipping

This product is available through our special order service. Each unit is sourced, tested, and configured for your needs before dispatch. Delivery times may vary depending on availability and handling requirements. We will keep you informed throughout the process.
