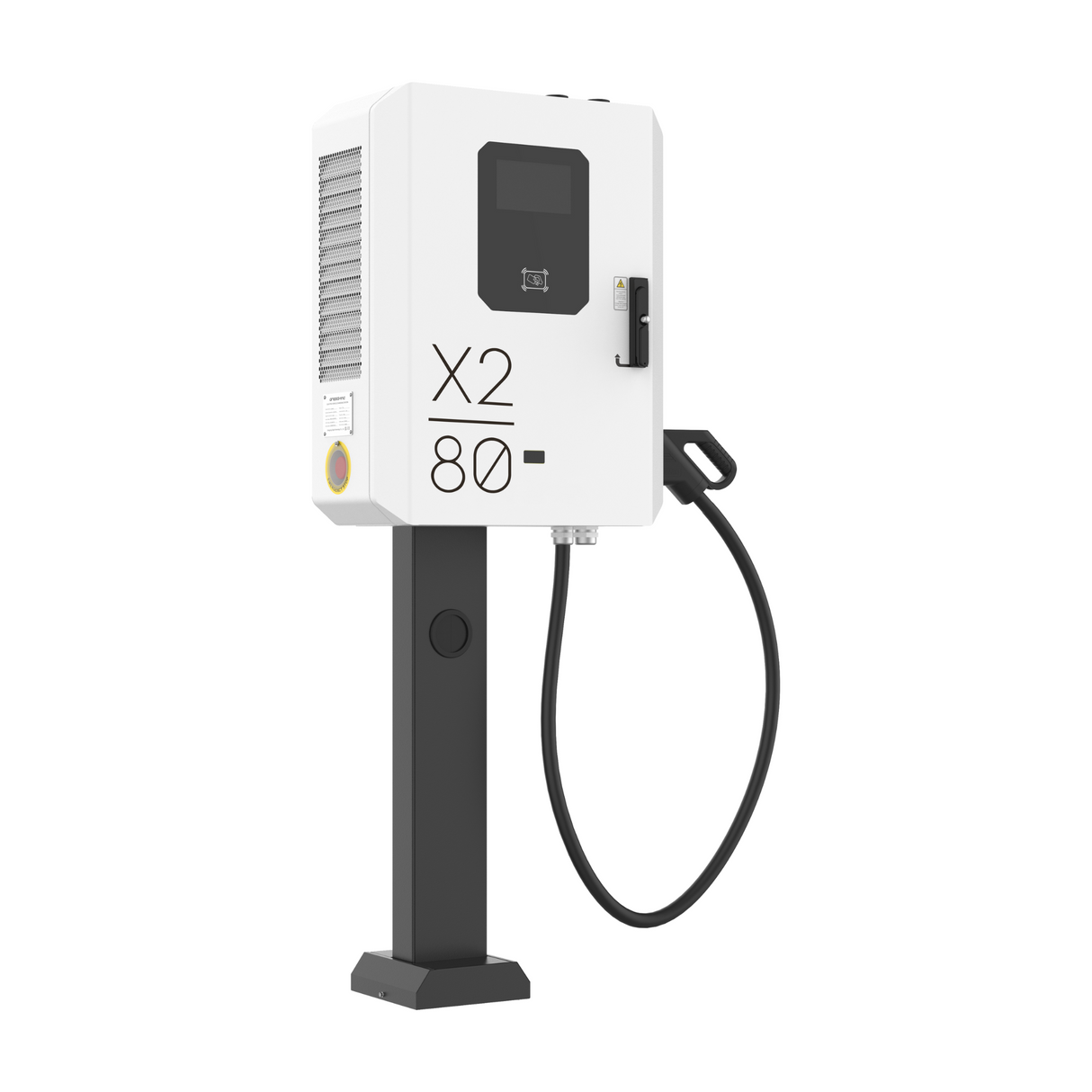

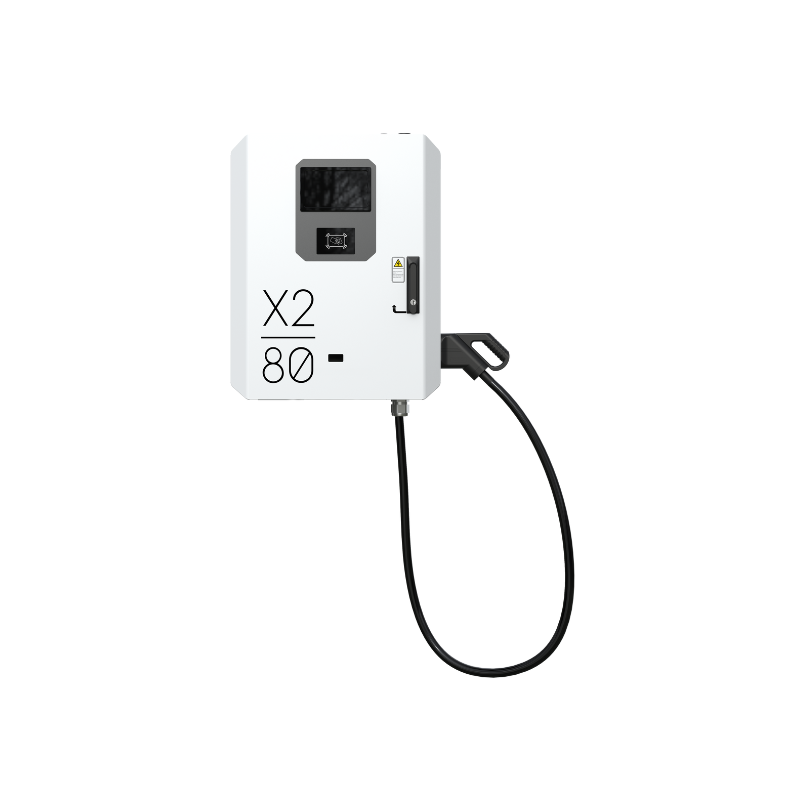

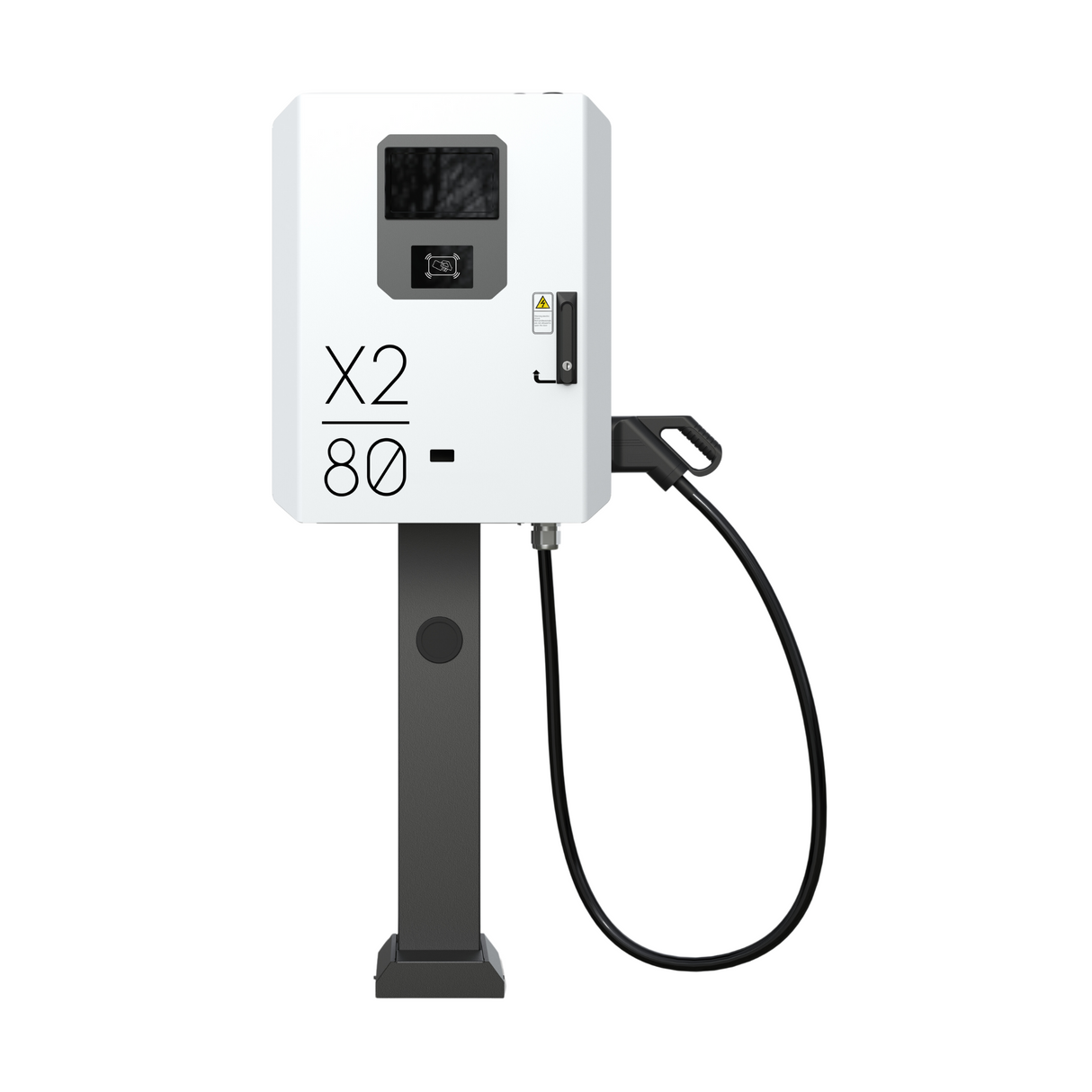

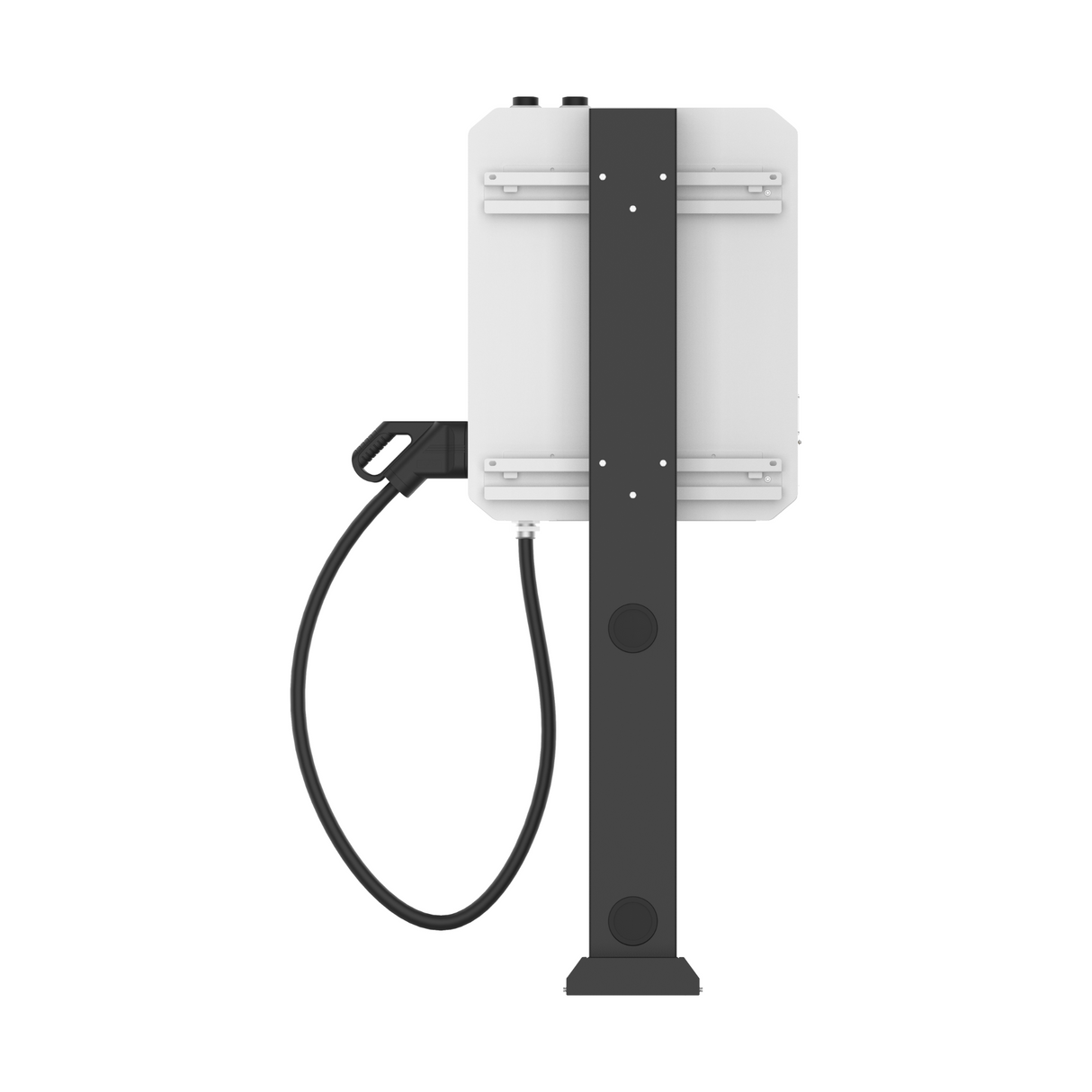

X280 DC Charger | 30kW | Single CCS2 Port | 4.5m Cable

Name: X280 DC Charger | 30kW | Single CCS2 Port | 4.5m Cable
Brand: X280
SKU: JCADC030001649-PCNS
Availability: InStock

Barcode: X280-F1-EU30-C

Delivery time varies; see Product Detail Page

Warranty Extension

X280 30 kW DC Charger with Standard Warranty X280 30 kW DC Charger + 2 Years Extended Warranty X280 30 kW DC Charger + 3 Years Extended Warranty

Product variants

Electrician Only

Product Overview

Upgrade your power solution with the X280 30kW — where performance meets reliability.

Experience the next level of power and efficiency with the X280 30kW. Engineered for demanding commercial and industrial applications, the X280 delivers robust performance, reliability, and advanced features to meet your energy needs.

Why Choose the X280 30kW?

Reliable, high-capacity performance
Advanced safety and monitoring features
Easy installation and maintenance
Backed by comprehensive technical support

Need extra reassurance for peace of mind? X280 currently offers 2-year and 3-year warranty extensions on top of the standard warranty coverage, available for purchase. Simply select the appropriate option for this product before proceeding to checkout. Please note that warranty extensions can only be purchased at the same time as the charger. This option is not available for an existing installed charger or for a charger purchased separately.

This product is available through our special order service. Estimated minimum lead time: **13 weeks**, including sourcing, testing, and configuration to meet your requirements before dispatch. Lead times may vary based on order quantity, supplier availability, and the type of pre-commissioning work. We will keep you updated throughout the process.

Instructions & Datasheets

Installation Manual

Maintenance Manual

Spec Sheet

Backend Configuration Manual

Debugging Tool

Error code Troubleshoot

Features

High Power Output: With a maximum capacity of 30kW, the X280 is designed to handle intensive workloads, ensuring consistent and reliable energy delivery.
Advanced Technology: Equipped with state-of-the-art control systems for optimal efficiency, safety, and ease of use.
Durable Construction: Built with premium materials and a rugged enclosure, the X280 is suitable for both indoor and outdoor installations, offering long-lasting performance in any environment.
User-Friendly Interface: Intuitive controls and a clear display make operation and monitoring straightforward for all users.
Flexible Integration: Compatible with a wide range of systems and applications, the X280 seamlessly integrates into your existing infrastructure.

Specifications

Mechanical & Environmental Specs

Cable Length: 4.5m
Dimensions (W×D×H): 600mm × 260mm × 750mm
Net Weight: 71kg
Protection: IP54, IK10
Storage Temperature: -40~70℃
Operating Temperature: -25~50℃
Operating Humidity: 5%~95% (no condensation)
Altitude: ≤2000m
Cooling: Forced air cooling

Electrical Specifications

Rated Power: 30kW
AC Input Voltage Range: 380V (323V–460V)
AC Input Current Range: 48A (0–58A)
Grid Types: TN-S, TN-C-S, TT
Grid Connection: 3P+N+PE
DC Output Options: CCS2
DC Output Voltage Range: 150V–1000V
DC Output Current: 0–100A
Peak Efficiency: ≥95%
Power Factor (full load): ≥0.99
THDi: ≤5%

User Interface & Control

Authentication: APP, QR Code (optional), RFID
Display: 7-inch touch LCD
Connectivity: Ethernet/4G
Communication Protocol: OCPP 1.6J
Vehicle & Charger Communication: ISO 15118 / DIN 70121 - 2014
