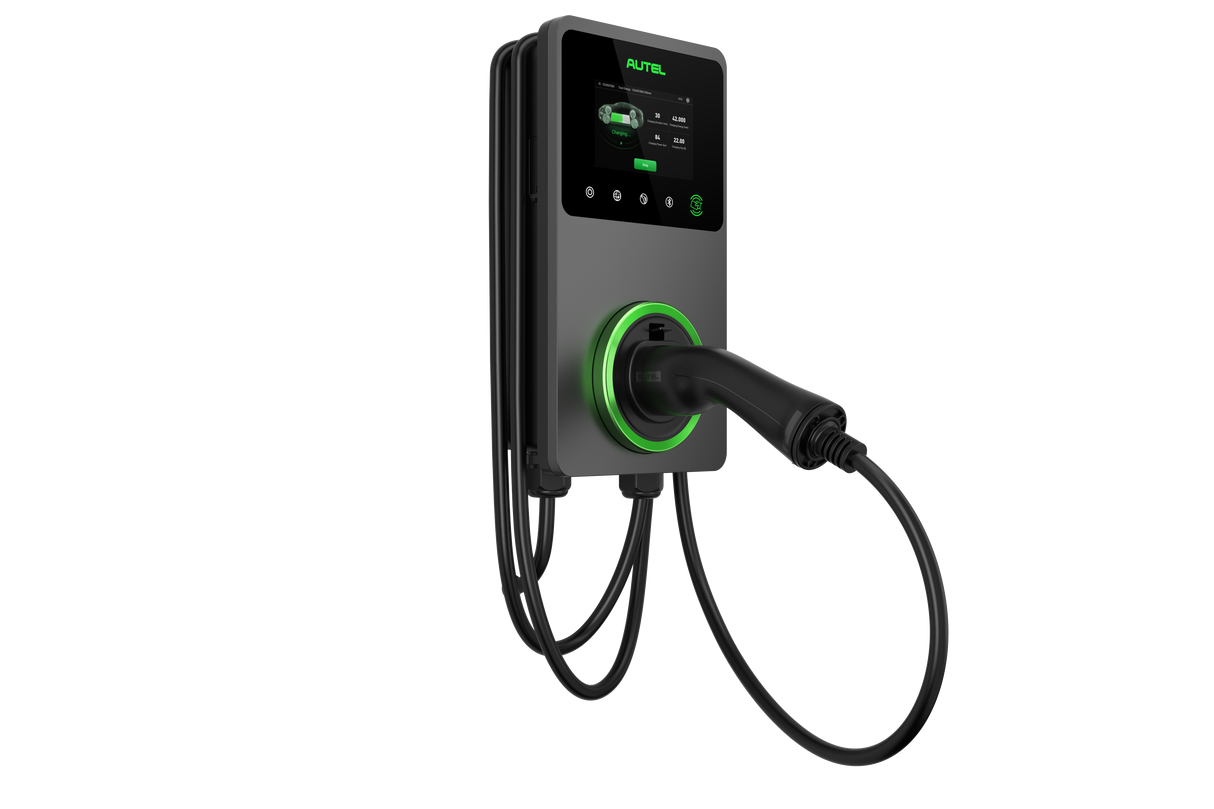

Autel Maxicharger AC Premium | 22kW | LCD Screen | 4G Connection | Tethered 5m

Name: Autel Maxicharger AC Premium | 22kW | LCD Screen | 4G Connection | Tethered 5m
Brand: Autel Maxicharger
SKU: AUSAC022500206
Availability: InStock

Barcode: Maxi EU AC W22-C5-4G-L-M

$1,573.00 (Ex.GST)

RRP (Ex.GST): $1,573.00

Dispatch 1-2 business days

We offer pre-commissioning services for this product.

Product Overview

Smart, Fast, and Connected EV Charging for Every Environment

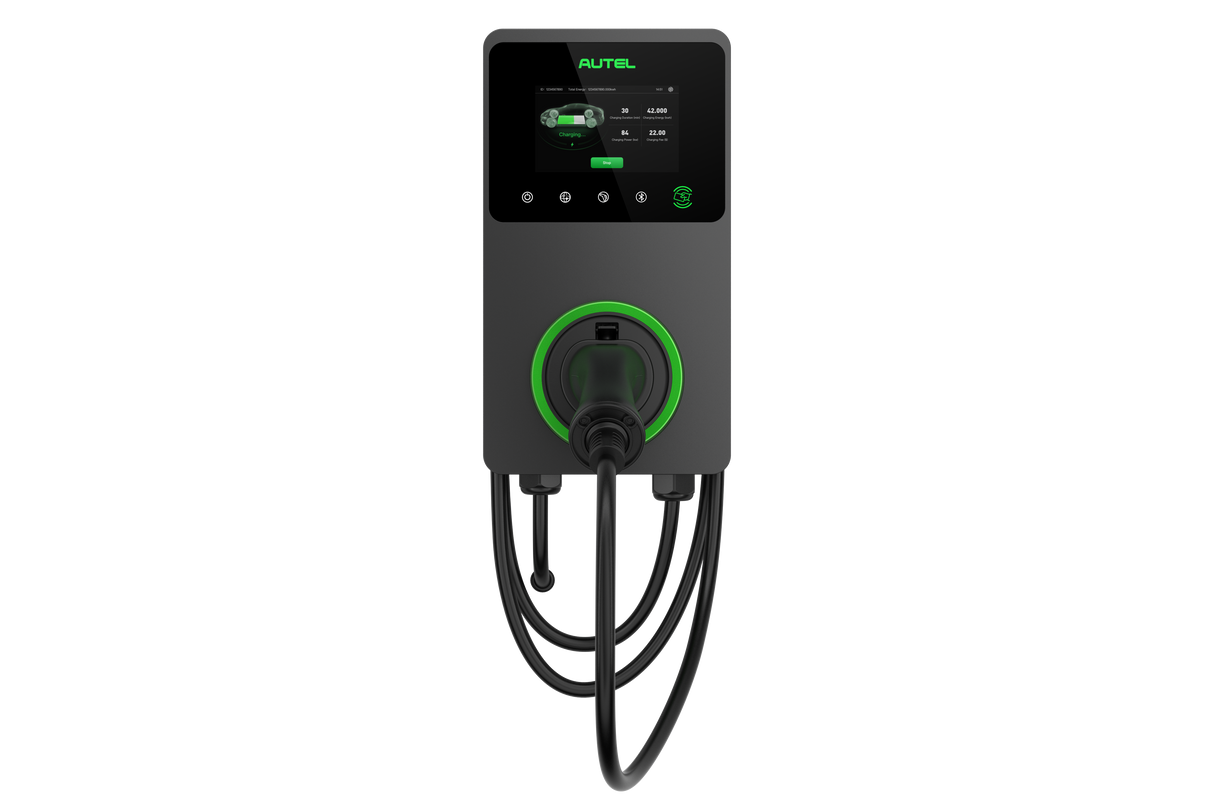

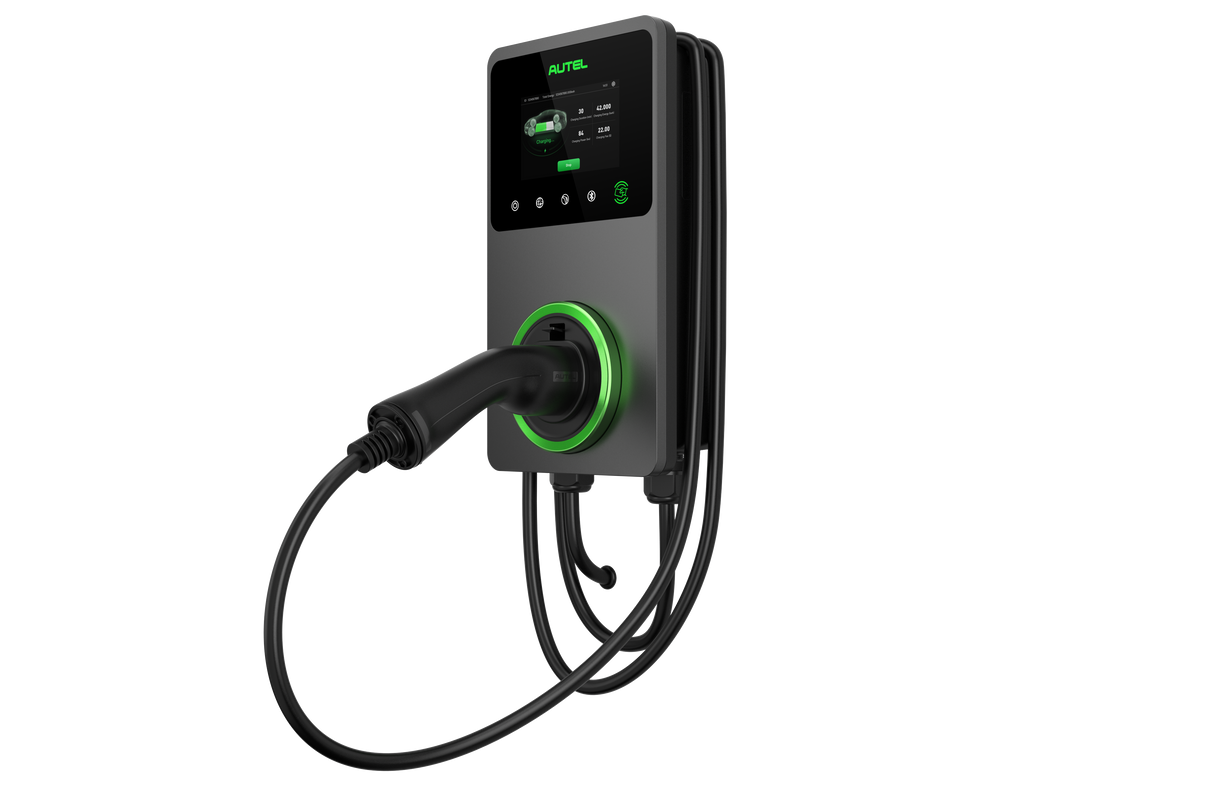

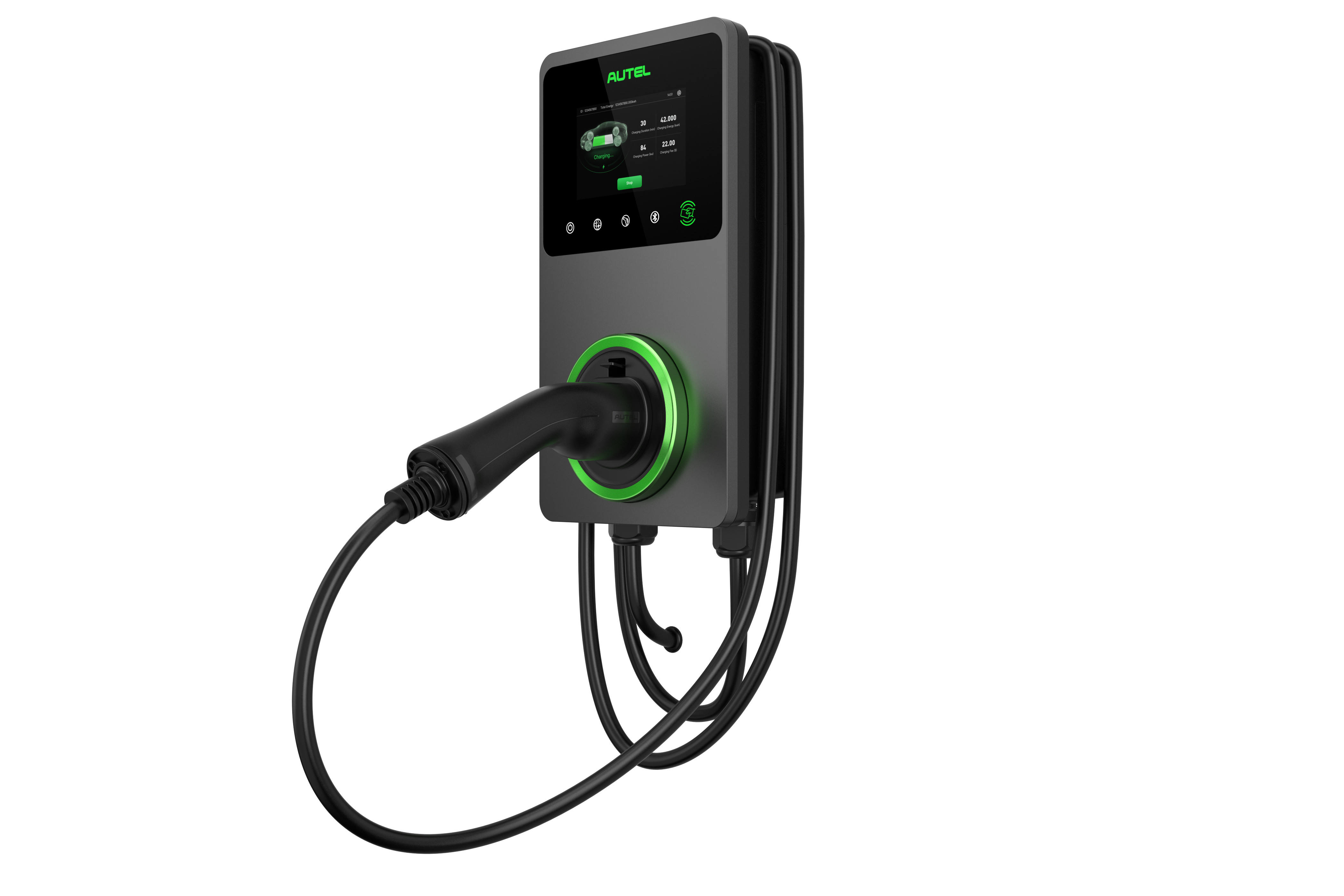

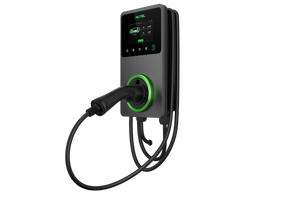

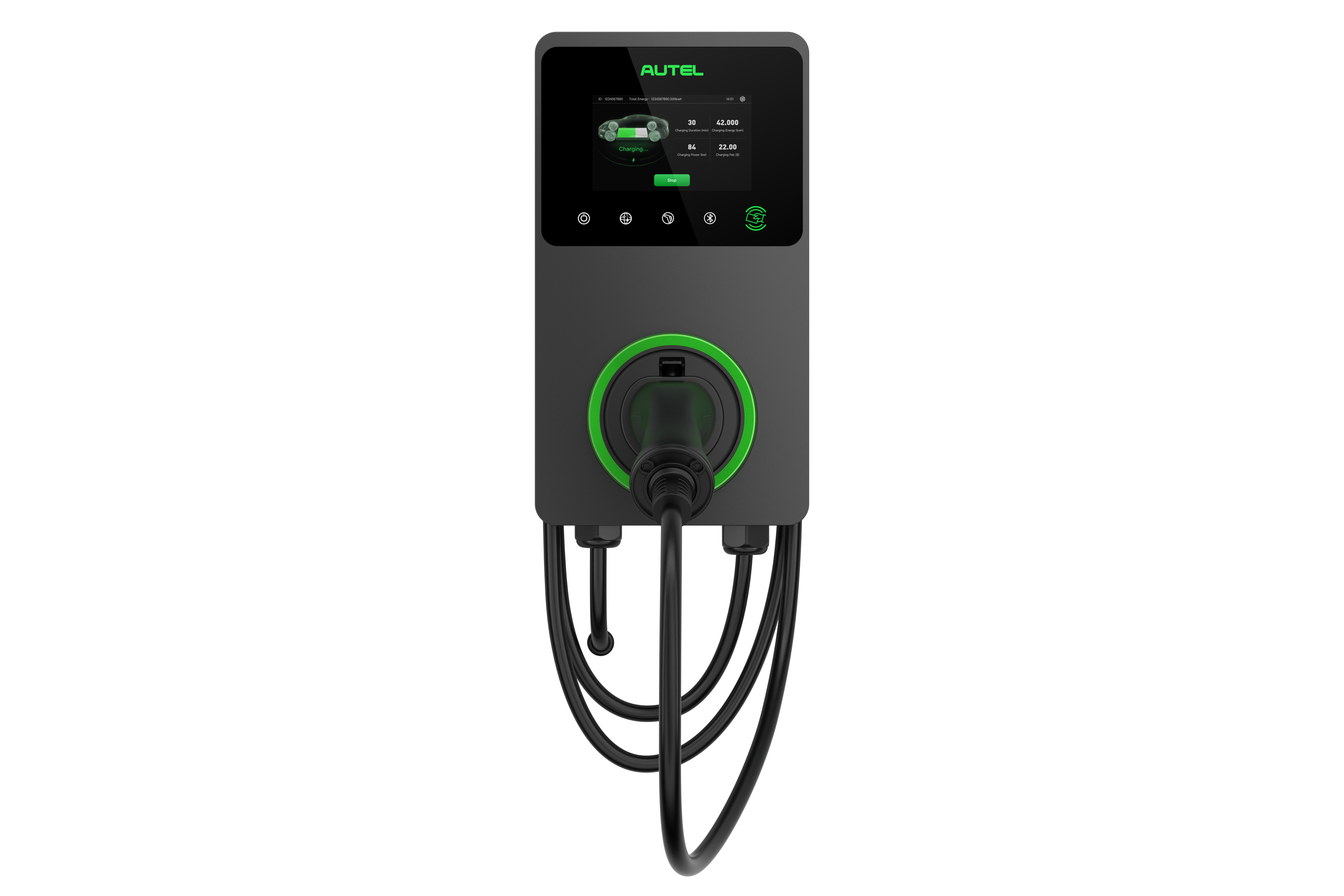

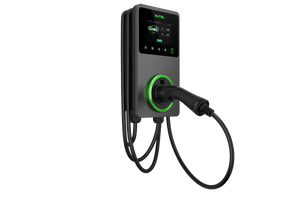

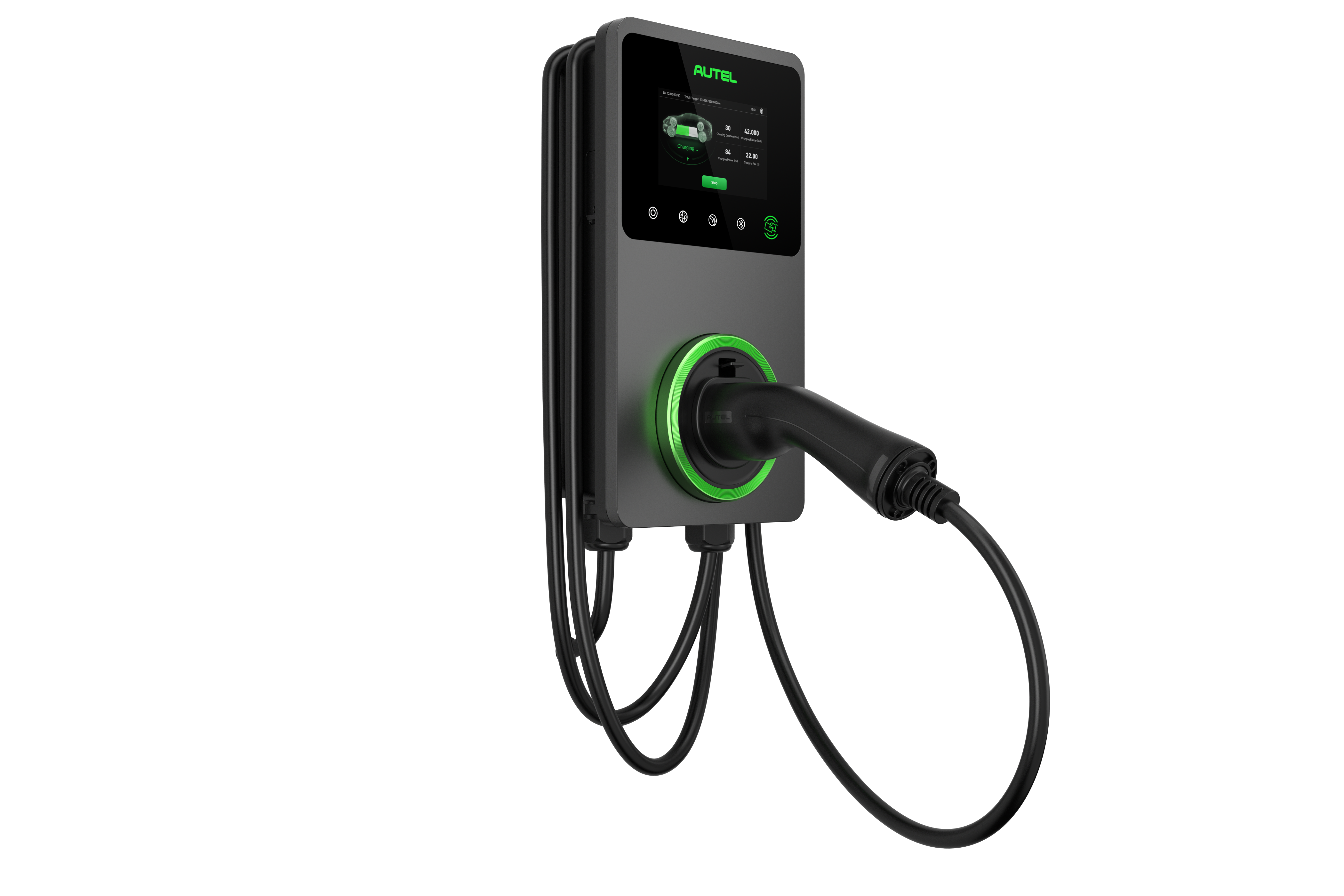

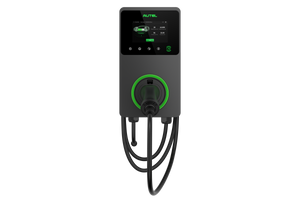

The Autel MaxiCharger AC Wallbox Premium is a high-performance, three-phase AC charger designed for residential, commercial, and workplace EV charging. With a sleek dark grey finish and imbedded 4G Modem for advanced connectivity, this model delivers 22kW of power with a 5m cable, a 5-inch LCD touchscreen, and MID-certified metering for accurate billing and energy tracking.

Please Note: In order to configure your Autel charger, you will need to:

Apply for access to the App at least 1 week prior to installation.
Download the Autel Configuration App.

Further instructions are within the Instructions & Datasheets tab > Charger configuration instructions

Instructions & Datasheets

Datasheet

Installation & Operation Manual

User Manual

Autel Config App Installer User Guide

Autel Charge App Home User Guide

Features

High Safety: Utilises multi-layer protection technology and a safe charging mode for enhanced safety.

Long Lasting: Incorporates intelligent battery diagnostic technology to prolong battery life and ensure durability.

High Reliability: Engineered to withstand extreme weather conditions, ensuring dependable performance in any environment.

High Convenience: Provides charging management via a cloud system and app for easy installation, use, and maintenance.

Specifications

Weight: 6.7kg

Dimensions (H,W,D): 336mm x 187mm x 85mm

Charging mode: Type 2

Input/output power rating and current: Three phase up to 22kW/32A

Input/output voltage: 400V±15%, three phase

Connector type: IEC 62196 type 2 socket or socket with shutter

Cable Length: 5 metres

Internal RCD: Type A + DC 6mA

Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection

Card reader (Optional): ISO 15693, ISO 14443

Power measurement accuracy: +/- 1.0%

IP and IK rating: IP65 and IK08

Operating altitude: 2000m

Operating temperature range: -40 degree celsius ~ +55 degree celsius

Storage temperature range: -40 degree celsius ~ + 85 degree celsius

Mounting: Wall or floor using a pedestal

User interface: Autel Charge APP

Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G Connection, CAN, RS485 for energy meter connection

Communication protocols: OCPP 1.6J

User authentication: APP, RFID card

Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955, IEC 61439-1/ -7

Certification: CE (TUV)

Returns & Warranty

This product is backed by a 3-year warranty.

Refer to the warranty terms here.

Read the JET Charge returns policy here.

Shipping

We dispatch all AC chargers, cables and small accessories on the same day or the next business day after you order. Shipping from Melbourne. Shipping fees will apply at checkout.
