NEW ARRIVAL

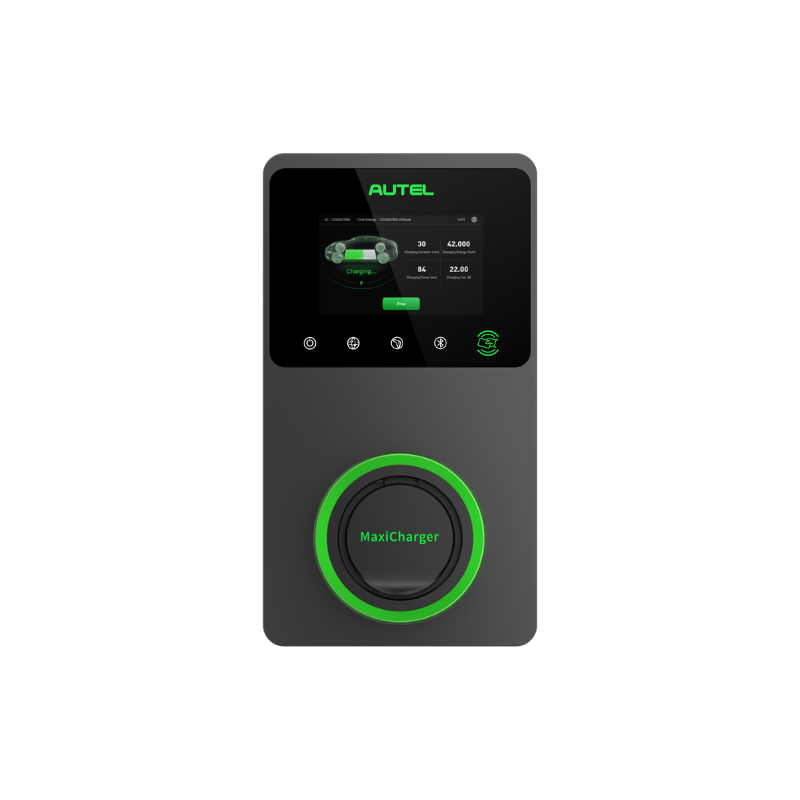

Autel Maxicharger AC Premium | 22kW | LCD Screen | 4G Connection | Socket

Barcode: Maxi EU AC W22-S-4G-L-M
$1,492.00 (Ex.GST)
RRP (Ex.GST): $1,492.00

Delivery time varies; see Product Detail Page

Product Overview

This product is available through our special order service. Estimated lead time:**13 weeks**, including sourcing, testing, and configuration for your needs before dispatch. Lead times may vary based on order quantity, supplier availability and handling requirements. We will keep you updated throughout the process.

Smart, Fast, and Connected EV Charging for Every Environment

The Autel MaxiCharger AC Wallbox Premium is a high-performance, three-phase AC charger designed for residential, commercial, and workplace EV charging. With a sleek dark grey finish and imbedded 4G Modem for advanced connectivity, this model delivers 22kW of power, a 5-inch LCD touchscreen, and MID-certified metering for accurate billing and energy tracking.


Please Note: In order to configure your Autel charger, you will need to:

  1. Apply for access to the App at least 1 week prior to installation.
  2. Download the Autel Configuration App.

Further instructions are within the Instructions & Datasheets tab > Charger configuration instructions

Instructions & Datasheets

Features

High Safety: Utilises multi-layer protection technology and a safe charging mode for enhanced safety.

Long Lasting: Incorporates intelligent battery diagnostic technology to prolong battery life and ensure durability.

High Reliability: Engineered to withstand extreme weather conditions, ensuring dependable performance in any environment.

High Convenience: Provides charging management via a cloud system and app for easy installation, use, and maintenance.

Specifications

Weight: 6.7kg

Dimensions (H,W,D): 336mm x 187mm x 85mm

Charging mode: Type 2

Input/output power rating and current: Three phase up to 22kW/32A

Input/output voltage: 400V±15%, three phase

Connector type: IEC 62196 type 2 socket or socket with shutter

Internal RCD: Type A + DC 6mA

Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection

Card reader (Optional): ISO 15693, ISO 14443

Power Meter & measurement accuracy: +/- 1.0%, Build-In MID Certified Meter

IP and IK rating: IP65 (IP54 for socket version)

Operating altitude: 2000m

Operating temperature range: -40 degree celsius ~ +55 degree celsius

Storage temperature range: -40 degree celsius ~ + 85 degree celsius

Mounting: Wall or floor using a pedestal

User interface: Autel Charge APP

Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G Connection, CAN, RS485 for energy meter connection

Communication protocols: OCPP 1.6J

User authentication: APP, RFID card

Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955, IEC 61439-1/ -7

Certification: CE (TUV)

Returns & Warranty

This product is backed by a 3-year warranty.

Refer to the warranty terms here.

Read the JET Charge returns policy here.

Shipping

We dispatch all AC chargers, cables and small accessories on the same day or the next business day after you order. Shipping from Melbourne. Shipping fees will apply at checkout.

More on Shipping.

Autel Maxicharger AC Premium | 22kW | LCD Screen | 4G Connection | Socket

Autel Maxicharger
From $1,492.00 (Ex.GST)
RRP (Ex.GST): $1,492.00
This product is available through our special order service. Estimated lead time:**13 weeks**, including sourcing, testing, and configuration for your needs before dispatch. Lead times may vary based on order quantity, supplier availability and handling requirements. We will keep you updated throughout the process.

Smart, Fast, and Connected EV Charging for Every Environment

The Autel MaxiCharger AC Wallbox Premium is a high-performance, three-phase AC charger designed for residential, commercial, and workplace EV charging. With a sleek dark grey finish and imbedded 4G Modem for advanced connectivity, this model delivers 22kW of power, a 5-inch LCD touchscreen, and MID-certified metering for accurate billing and energy tracking.


Please Note: In order to configure your Autel charger, you will need to:

  1. Apply for access to the App at least 1 week prior to installation.
  2. Download the Autel Configuration App.

Further instructions are within the Instructions & Datasheets tab > Charger configuration instructions

Product Type
AC Charger
Charging Rate
22kW
Smart Charger

A smart charger connects to the internet, allowing you to monitor, control, and schedule charging. It can be set up to charge during off-peak times or use solar power if available.

Yes
RFID
Yes
With Cable
No
Cable Length
N/A
Warranty

This product is backed by a 3-year warranty.

Refer to the warranty terms here.

Read the JET Charge returns policy here.
