NEW ARRIVAL
Autel

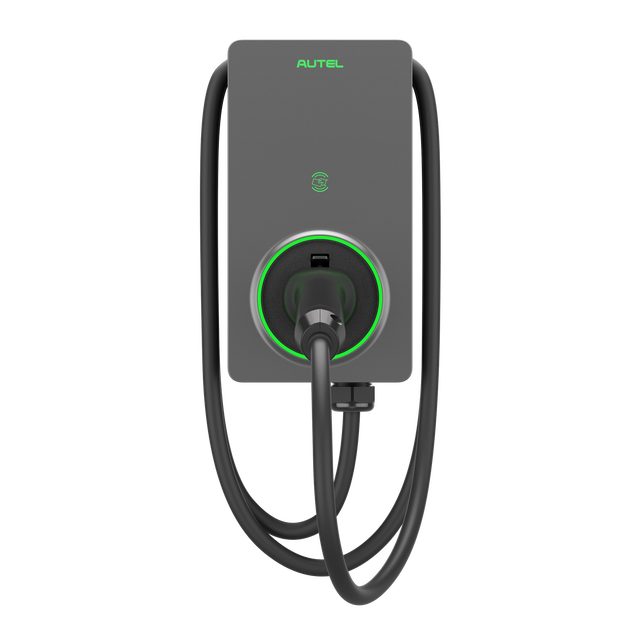

Autel AC Single | 7.4kW Single-Phase | Tethered 5m | WiFi Only | Non-Display

Barcode: 106002078
$880.00 (Ex.GST)
RRP (Ex.GST): $880.00
Dispatch 1-2 business days
Sign In/Up for Electrician Pricing

Product Overview

Simple, Cost-Effective Smart Charging for Wi‑Fi Enabled Sites

The Autel AC Single Wi‑Fi–only range offers a streamlined and budget-friendly entry point into advanced EV charging for locations with stable Wi‑Fi connectivity. Available in both 7.4 kW single-phase and 22 kW three-phase models, these variants are designed for straightforward deployment at homes or small commercial premises where dedicated network infrastructure or load management are not required. They deliver efficient AC charging while maintaining all the essential features that Autel AC Single range can offer.

This product is not recommended for sites require billing service or load management, be sure to check out the recommended Autel AC Single variants for billing and load management or simply contact us via email for more information and product support!

Instructions & Datasheets

Autel AC Single Charger Installation Manual

Autel AC Single Charger Commissioning Guide

Autel AC Singel Pedestal Installation Manual

Autel AC Single | 7.4kW Single-Phase | Tethered 5m | WiFi Only | Non-Display Spec Sheet

Features

5‑Year Warranty (at installation): Includes a Jet Charge exclusive 5‑year warranty guarantee from installation.

Dual OCPP Connectivity: Supports a duo OCPP connection, enabling more flexible backend connectivity for monitoring and platform requirements.

Connectivity Options by Variant for Cost Effective Project Requirement: Clear variant structure for WiFi only or 4G required site settings, fulfill your project need without spending too much.

Specifications
User Interface & Control
  • User Interface: LED Indicators
  • Authentication Methods: RFID
  • Connectivity: Wi-Fi, Bluetooth & RS485,
  • Communication Protocols: OCPP 1.6J & OCPP 2.0.1
Mechanical & Environmental Specs
  • Mounting: Wall-mounted or floor-mounted with pedestal
  • Dimensions (H×W×D): 315 × 170 × 117 mm
  • Weight: 6.3kg
  • Enclosure Rating: IP65 (charger body), IP54 (socket & shutter versions), IK10
  • Installation: Indoor or outdoor
  • Operating Temperature: -30°C to +50°C
  • Storage Temperature: -40°C to +70°C
  • Operating Humidity: <95%, non-condensing
  • Operating Altitude: ≤2000 m
  • Ambient Light Sensor: Yes

Electrical Specifications
  • Rated Output Power: Up to 7.4 kW
  • Input Voltage: 230V ±15%, single‑phase, 50/60 Hz
  • Rated Current: Up to 40A
  • Circuit Breaker Options: 1P + N + PE
  • Network Types: TN, TT, IT
  • Input Connection: Hardwired
  • Connector Options: 5m tethered cable

Returns & Warranty

Autel AC Single is backed up with Jet Charge Exclusive 5-Year warranty at installation.

Read the JET Charge returns policy here.

Shipping

We dispatch all AC chargers, cables and small accessories on the same day or the next business day after you order. Shipping from Melbourne. Shipping fees will apply at checkout.

More on Shipping.

Autel AC Single | 7.4kW Single-Phase | Tethered 5m | WiFi Only | Non-Display

Autel
$880.00 (Ex.GST)
RRP (Ex.GST): $880.00

Simple, Cost-Effective Smart Charging for Wi‑Fi Enabled Sites

The Autel AC Single Wi‑Fi–only range offers a streamlined and budget-friendly entry point into advanced EV charging for locations with stable Wi‑Fi connectivity. Available in both 7.4 kW single-phase and 22 kW three-phase models, these variants are designed for straightforward deployment at homes or small commercial premises where dedicated network infrastructure or load management are not required. They deliver efficient AC charging while maintaining all the essential features that Autel AC Single range can offer.

This product is not recommended for sites require billing service or load management, be sure to check out the recommended Autel AC Single variants for billing and load management or simply contact us via email for more information and product support!

Product Type
AC Charger
Charging Rate
7.4 kW
Smart Charger

A smart charger connects to the internet, allowing you to monitor, control, and schedule charging. It can be set up to charge during off-peak times or use solar power if available.

Yes
RFID
Yes
With Cable
Yes
Cable Length
5m
Warranty

Autel AC Single is backed up with Jet Charge Exclusive 5-Year warranty at installation.

Read the JET Charge returns policy here.
