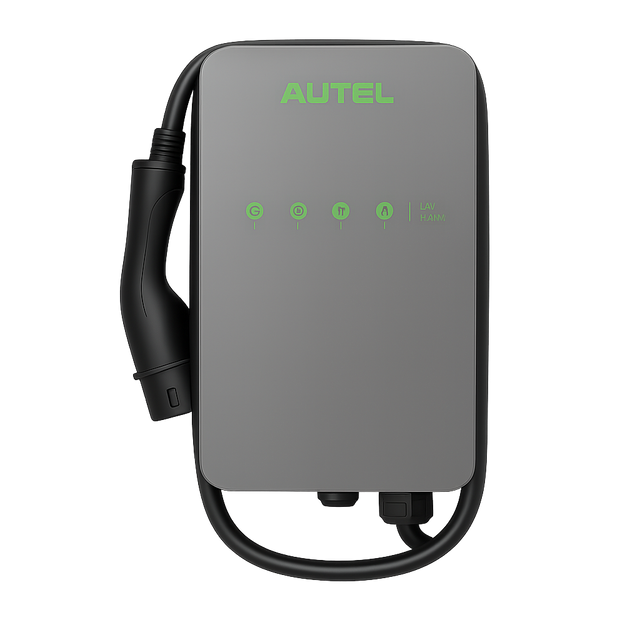

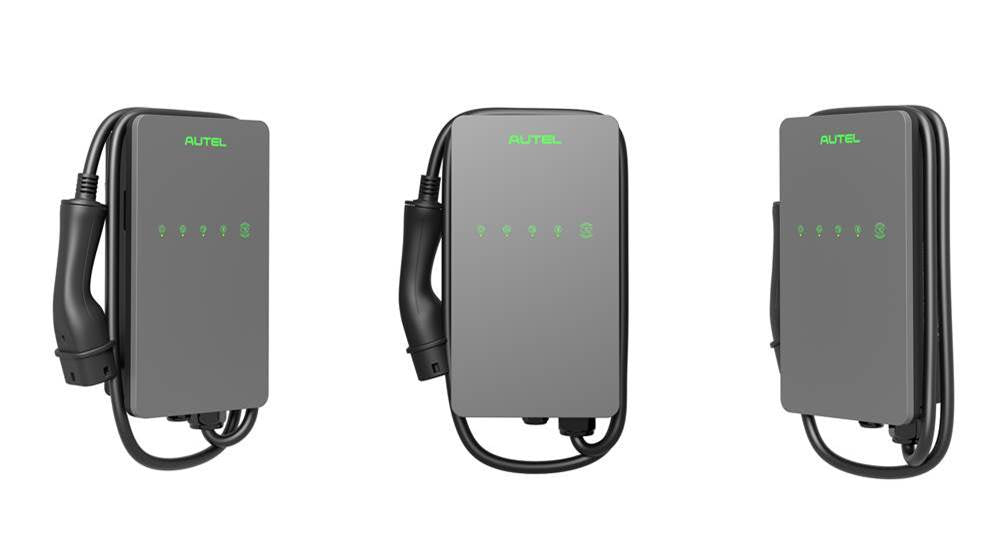

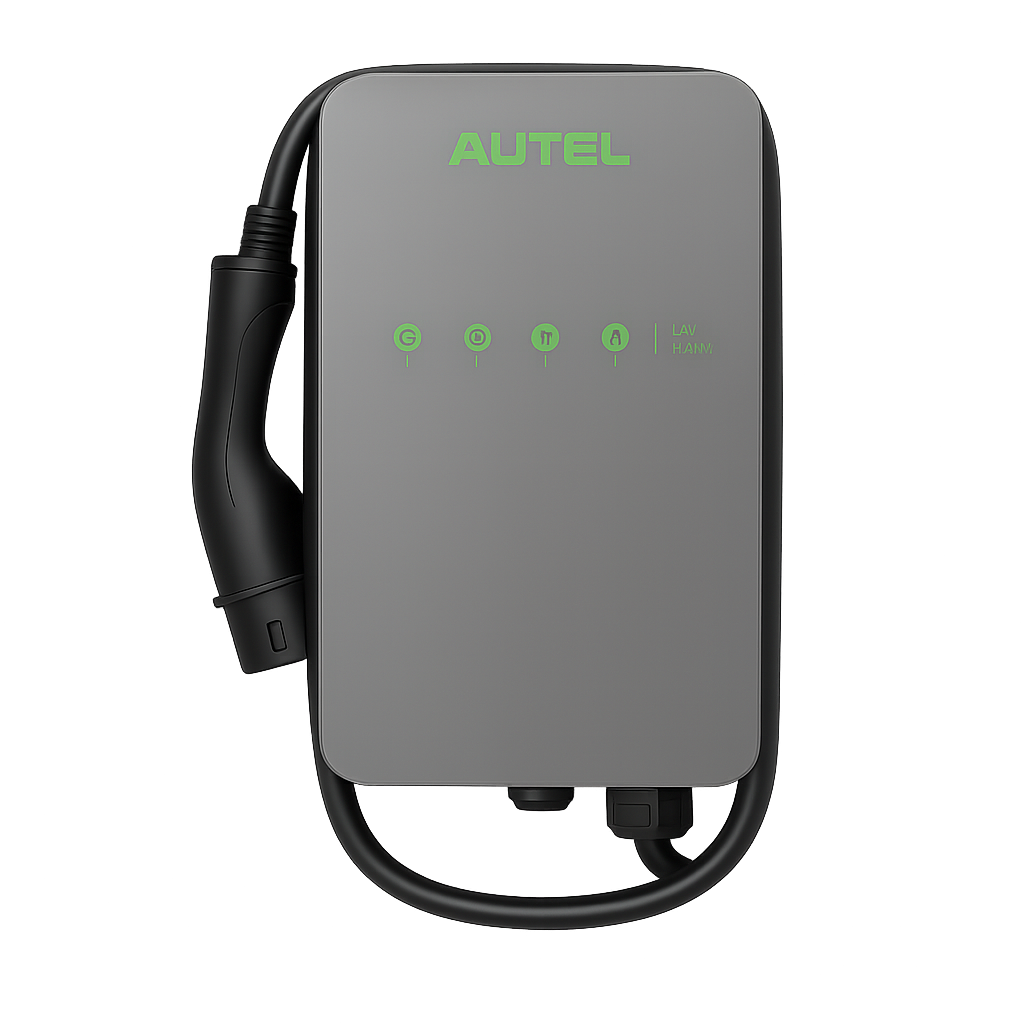

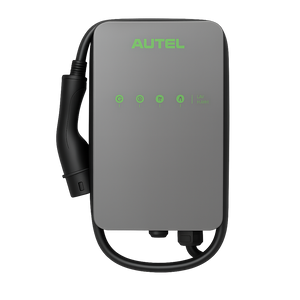

Autel Maxicharger AC Lite | 7.4kW | Single Phase | Tethered 5m

Barcode: Maxi EU AC Lite
$700.00 (Ex.GST)
RRP (Ex.GST): $700.00

Dispatch 1-2 business days

Product Overview

Simple Charging. Smart Design.

The Autel MaxiCharger AC Lite is the perfect entry-level solution for residential. Delivering up to 7.4 kW on single-phase power, this compact wall-mounted charger combines reliability with affordability, ideal for homes and small businesses looking for a cost-effective charging option.

Designed for simplicity, the AC Lite strips away unnecessary extras while maintaining essential smart feature, making it low-cost, high-value solution for everyday EV charging needs.


Please Note: In order to configure your Autel charger, you will need to:

  • Apply for access to the App at least 1 week prior to installation.
  • Download the Autel Configuration App and follow the set-up instructions in the installation manual.

Instructions & Datasheets

Features

Compact & Sleek Design: Minimalist, space-saving enclosure fits easily in any garage or parking space, blending with modern home aesthetics.

Clear Status Indicators: Bright, intuitive LEDs show charging status at a glance.

Minimal Setup: Quick installation and ready to use out of the box.

Perfect for Entry-Level Users: Focused on essential charging, without unnecessary features or distractions.

Specifications

Mechanical & Environmental Specs:

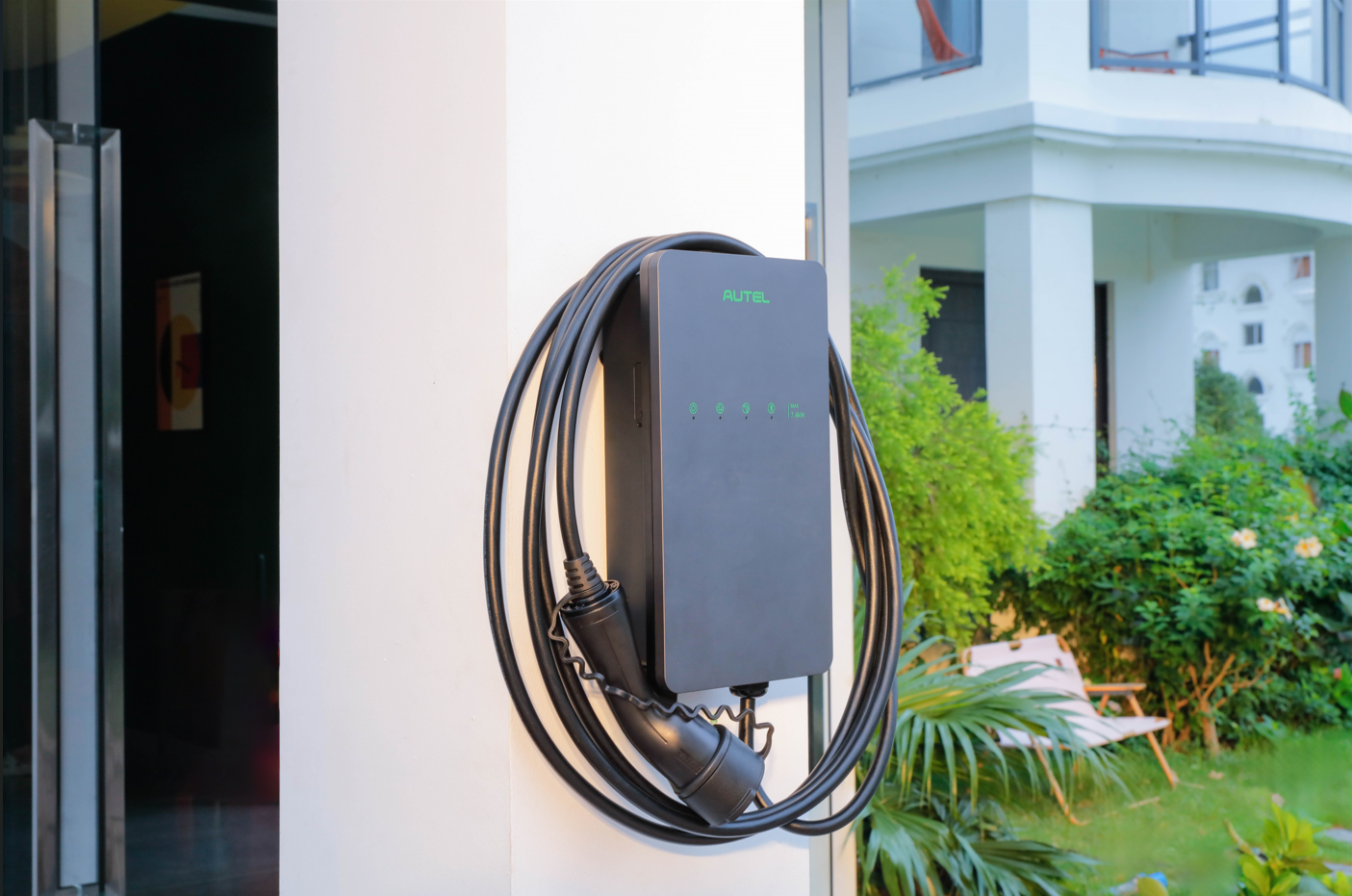

  • Mounting Options: Wall
  • Dimensions (H × W × D): 336 mm × 187 mm × 97 mm
  • IP Degree of Protection: IP65
  • IK Degree of Protection: IK08
  • Operating Temperature: -30°C to +50°C
  • Storage Temperature: -40°C to +70°C
  • Operating Altitude: Up to 2000 m

Electrical Specs:

  • Output Power: Up to 7.4 kW, Single Phase
  • Rated Current: 32 A
  • Rated Supply Voltage: 230 V ±15%, 50 Hz
  • Socket Type: IEC 62196 Type 2 plug (tethered), 5 m cable
  • Protection Device: AC 30 mA, DC 6 mA; Overcurrent, overvoltage, undervoltage, integrated surge protection
  • Power Measurement Accuracy: ±2% accuracy class
  • Standards: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955, IEC 61439-1/-7

User Interface & Control:

  • Status Indication: LED / APP

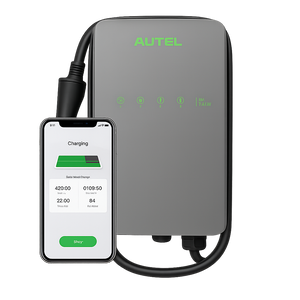

  • User Interface: Autel Charge APP; Autel Charge Cloud
  • Connectivity: Bluetooth, Wi-Fi
  • Communication Protocols: OCPP 1.6J (Autel cloud only)
  • User Authentication: APP, Autostart

Returns & Warranty

This product is backed by a 4-year warranty.

Read the JET Charge returns policy here.

Shipping

We dispatch all AC chargers, cables and small accessories on the same day or the next business day after you order. Shipping from Melbourne. Shipping fees will apply at checkout.

More on Shipping.

Autel Maxicharger AC Lite | 7.4kW | Single Phase | Tethered 5m

Autel Maxicharger
$700.00 (Ex.GST)
RRP (Ex.GST): $700.00

Simple Charging. Smart Design.

The Autel MaxiCharger AC Lite is the perfect entry-level solution for residential. Delivering up to 7.4 kW on single-phase power, this compact wall-mounted charger combines reliability with affordability, ideal for homes and small businesses looking for a cost-effective charging option.

Designed for simplicity, the AC Lite strips away unnecessary extras while maintaining essential smart feature, making it low-cost, high-value solution for everyday EV charging needs.


Please Note: In order to configure your Autel charger, you will need to:

Product Type
N/A
Charging Rate
7.4 kW
Smart Charger

A smart charger connects to the internet, allowing you to monitor, control, and schedule charging. It can be set up to charge during off-peak times or use solar power if available.

Yes
RFID
No
With Cable
Yes
Cable Length
5 m
Warranty

This product is backed by a 4-year warranty.

Read the JET Charge returns policy here.
