Autel MaxiCharger DC Compact | 50kW | Trolley version | 125A plug | 2x CCS2 (5.5m)

Barcode: Maxi EU DC47 TROLLEY

Delivery time varies; see Product Detail Page

Product Overview

This product is held in stock and dispatched within 7 days. Pre-commissioning, where selected, adds further time. We will keep you informed throughout the process.

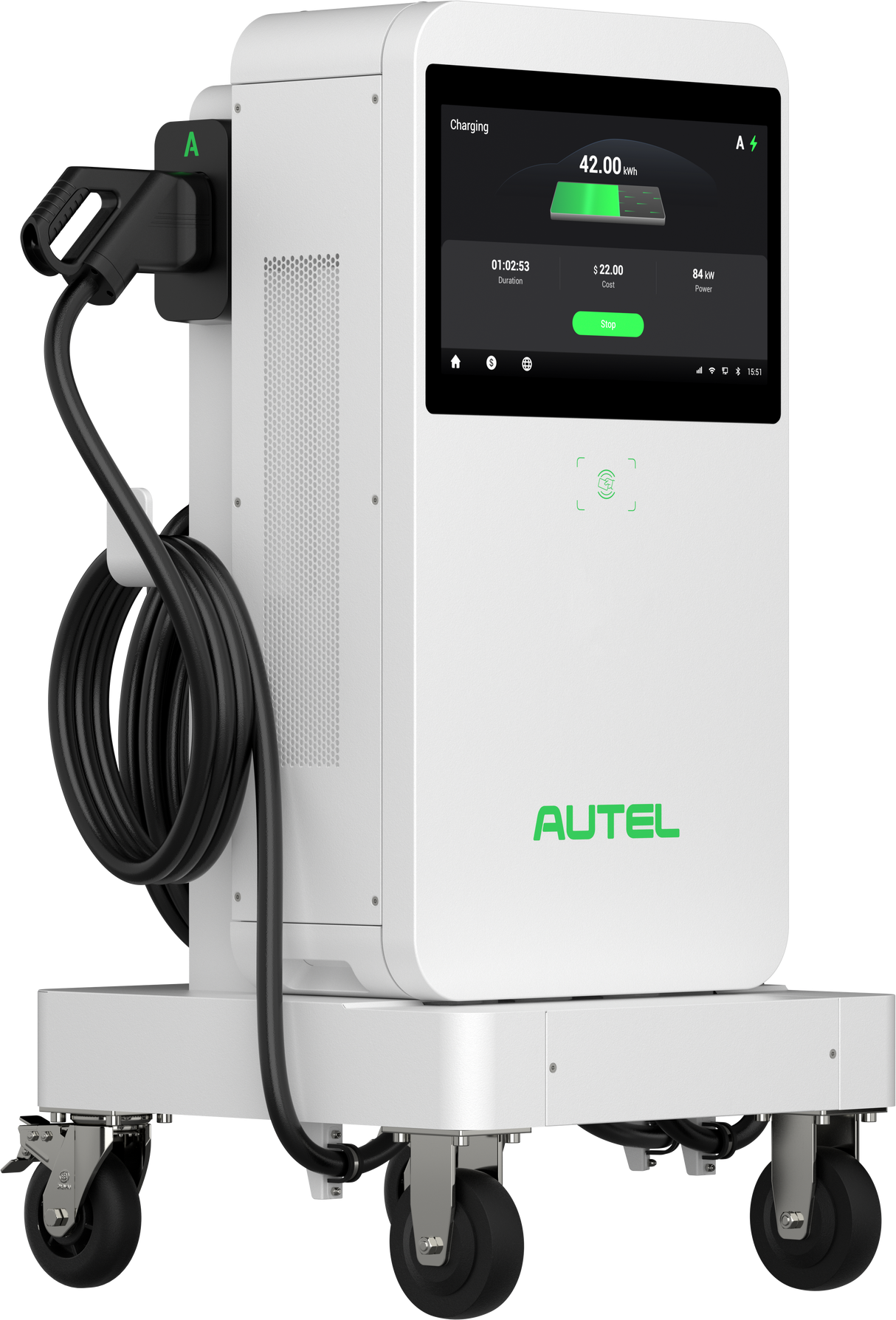

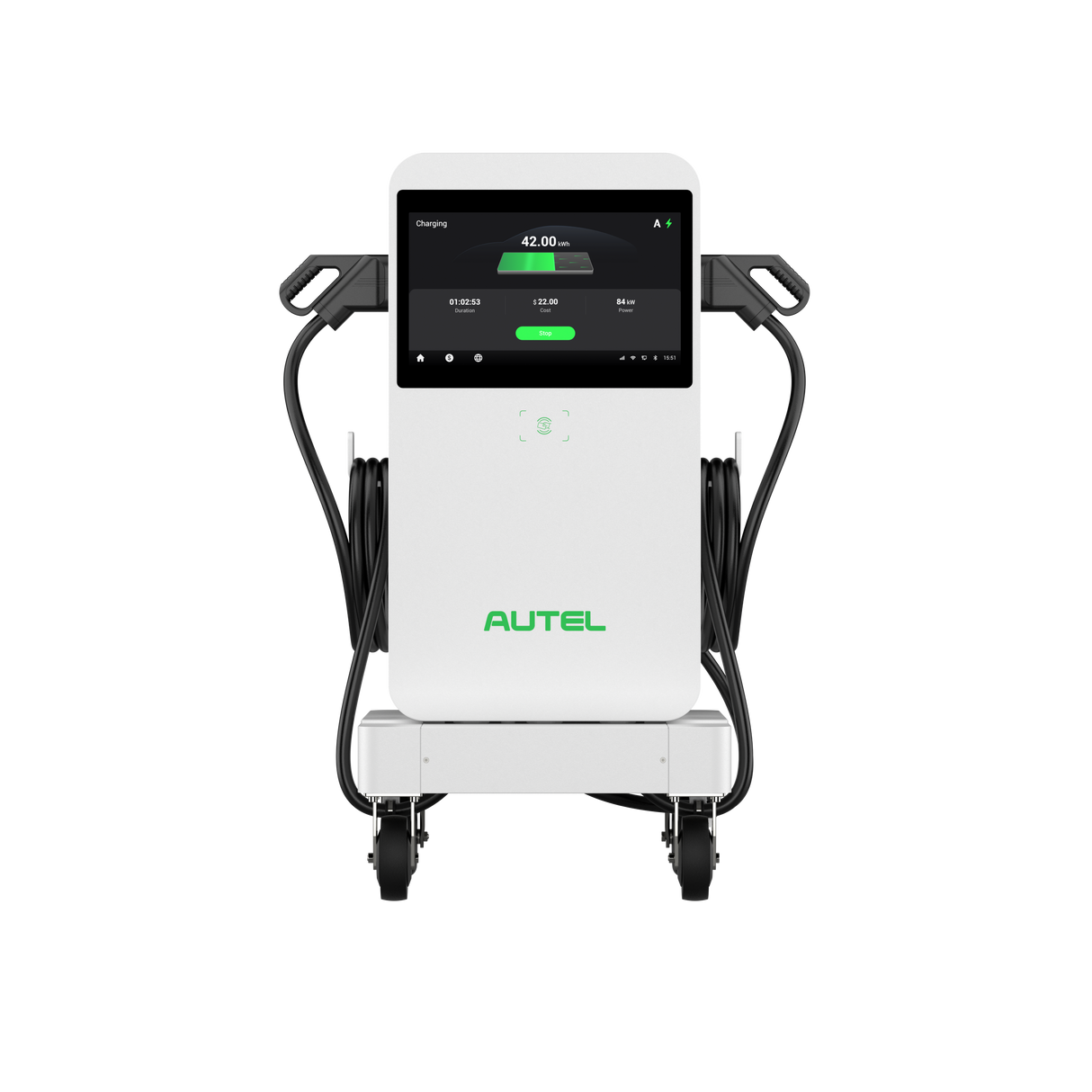

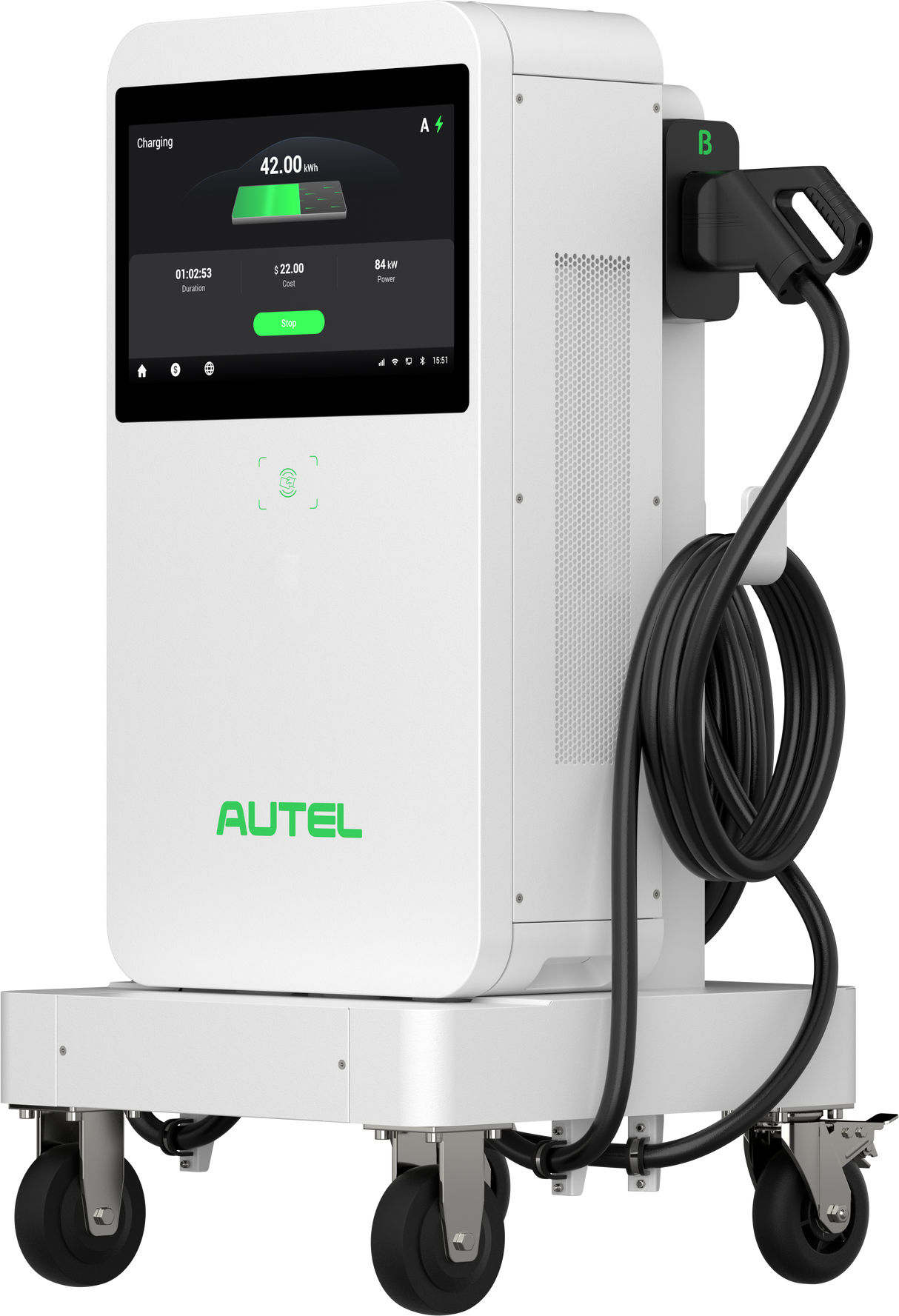

The MaxiCharger DC Compact with trolley mounting delivers the same powerful performance and innovative features in a highly mobile configuration. With dual ports and a maximum output of 47kW, it can charge two vehicles simultaneously, adding up to 130 km of range in just 30 minutes. Designed for mobility, the trolley-mounted version provides flexibility for temporary setups, events, and locations requiring adaptable charging solutions.

Featuring a user-friendly 21.5-inch touchscreen, an Android-powered smart system, and seamless payment integration (APP, RFID, credit card, and mobile), the trolley-mounted MaxiCharger is an excellent choice for dynamic environments. Its rugged IP54 weather-resistant design ensures reliable operation in challenging conditions. With 96% charging efficiency, advanced safety monitoring, and cloud network management, the trolley version is as robust and efficient as the pedestal model, but with enhanced versatility for on-the-go applications.

Instructions & Datasheets

Features

Fast and Effective. Built to increase charging efficiency:

Dual-ports provide up to 47kW of power

Charge 2 vehicles simultaneously

A 30 min charge equates to 130 km of range

Compact Design. Optimized for any location:

Ultra-compact with big DC power in a small package
Flexible installation allows for fixed or mobile positioning

DC Compact has low installation costs, meaning a faster ROI due to reduced capital expenditures for the site operator.

Smart Advertising and Communication Platform. Improve your ROI:

User-friendly 21.5-inch LCD touch screen

Powered by smart operating system, Android 10 with enhanced advertising placements

Communicate, promote or attract customers generating new revenue streams

Specifications

Weight: 220kg

Dimensions (H,W,D): 1247mm, 650mm, 650mm

Product Type: DC Charger on trolley

Colour: White

Charging Mode: Mode 4: CCS2

Cable Length (DC): 5.5M

Cable Length (AC-Input): 3M

Connector Type: 2 Type 2 Plugs (CCS2)

Rated Power: 40kW (Max. 47kW)

Max output current: 133 A

Output Voltage: 150 - 950V

Connectivity: WiFi, 4G, Ethernet

Communication protocols: OCPP 1.6J (can be upgraded to 2.0.1 later)

Operating Temperature: -30°C to 55°C

Operating Altitude: 2000m

Storage Temperature: -40°C to 70°C

IP and IK rating: IP54, IK10

Safety Standards: IEC 61851-1 IEC 61851-23 IEC 61851-21-2 ISO 15118

Warranty: 24 months

Returns & Warranty

DC Charger Warranty Summary:

  • Coverage: 24 months from installation or 30 months from JETcharge’s receipt, covering defects in materials or workmanship.
  • Process: Remote or in person troubleshooting support with site visits or replacements arranged by JETcharge if needed.
  • Exclusions: Damage from misuse, unauthorized repairs, wear and tear, or consumable parts.

Read the JET Charge returns policy here.

Shipping

This product is held in stock and dispatched within 7 days. Pre-commissioning, where selected, adds further time. We will keep you informed throughout the process.
