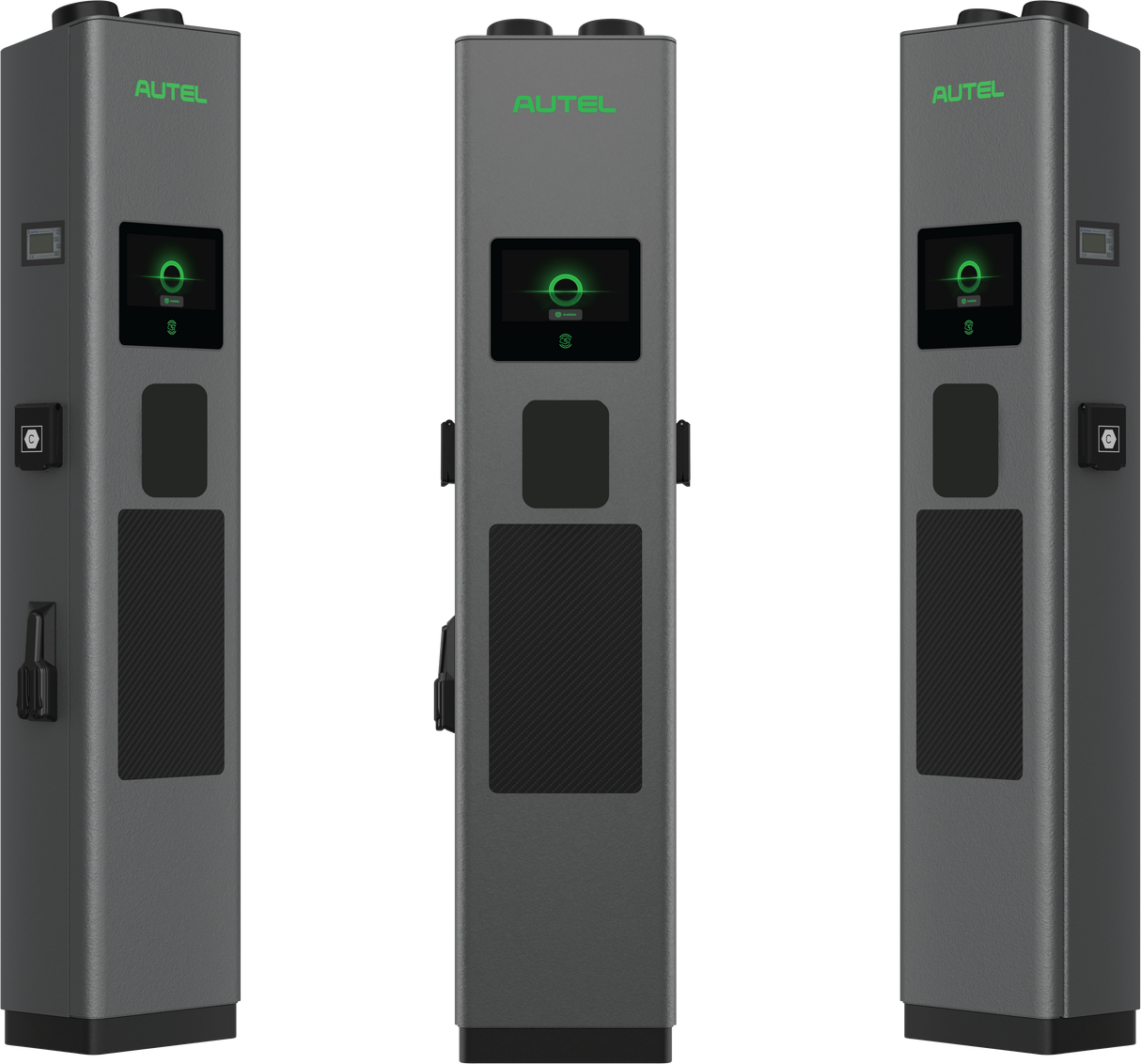

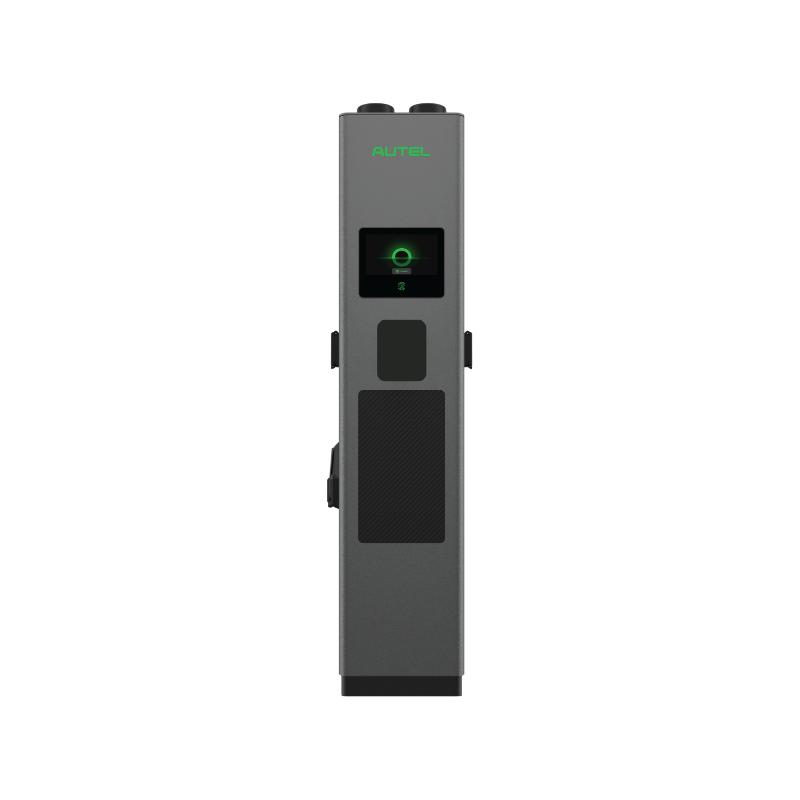

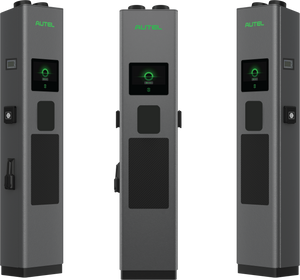

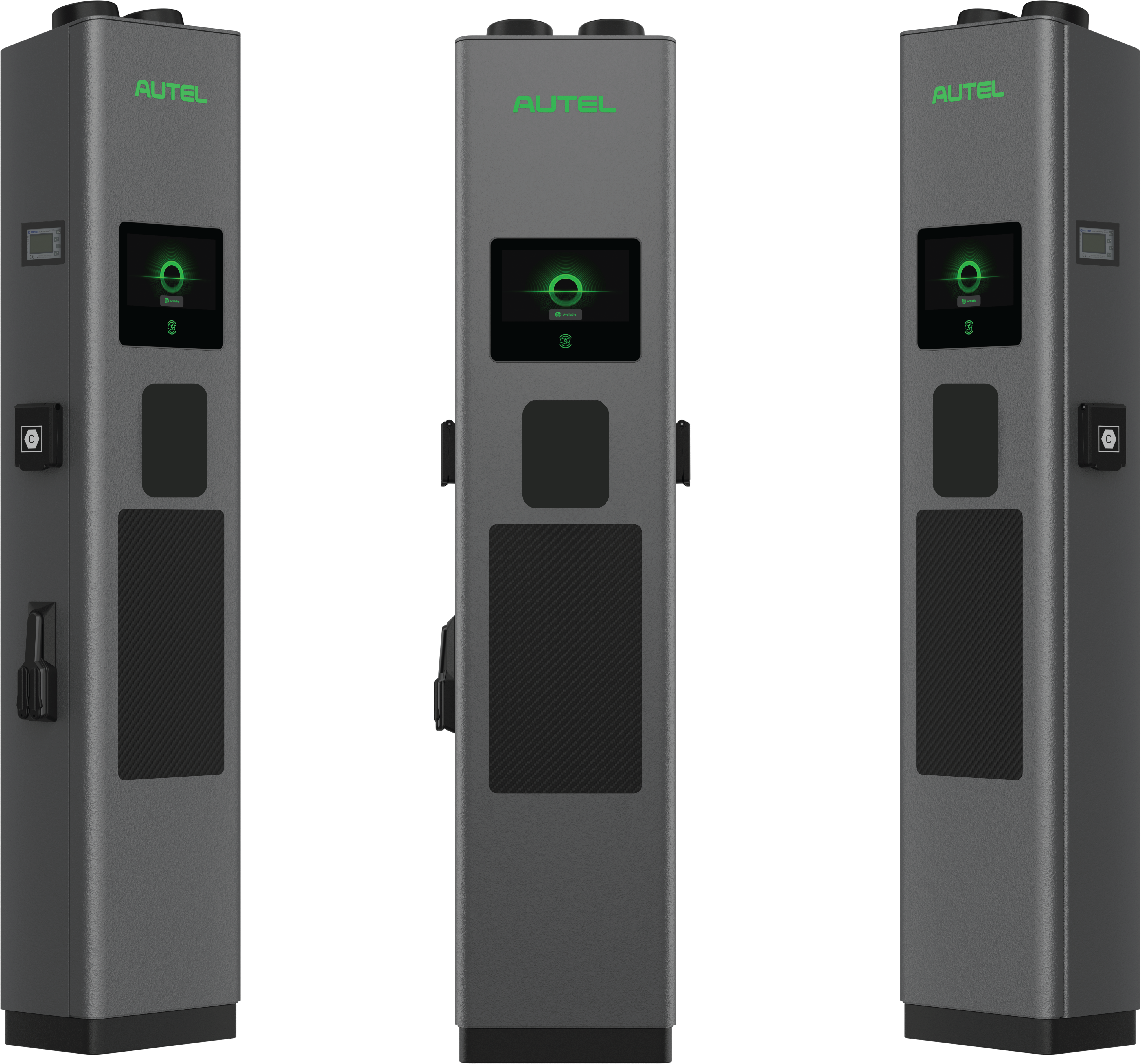

Autel Maxicharger AC Ultra Street | 2 x 22kW | Dual Port | Socket

Name: Autel Maxicharger AC Ultra Street | 2 x 22kW | Dual Port | Socket
Brand: Autel Maxicharger
SKU: AUMAC044001289
Availability: InStock

Barcode: 106001554

$5,999.00 (Ex.GST)

RRP (Ex.GST): $5,999.00

Delivery time varies; see Product Detail Page

We offer pre-commissioning services for this product.

Product Overview

This product is available through our special order service. Estimated lead time: **13 weeks**, including sourcing, testing, and configuration for your needs before dispatch. Lead times may vary based on order quantity, supplier availability and handling requirements. We will keep you updated throughout the process.

Dual-Port AC Charging. Engineered for Commercial Excellence.

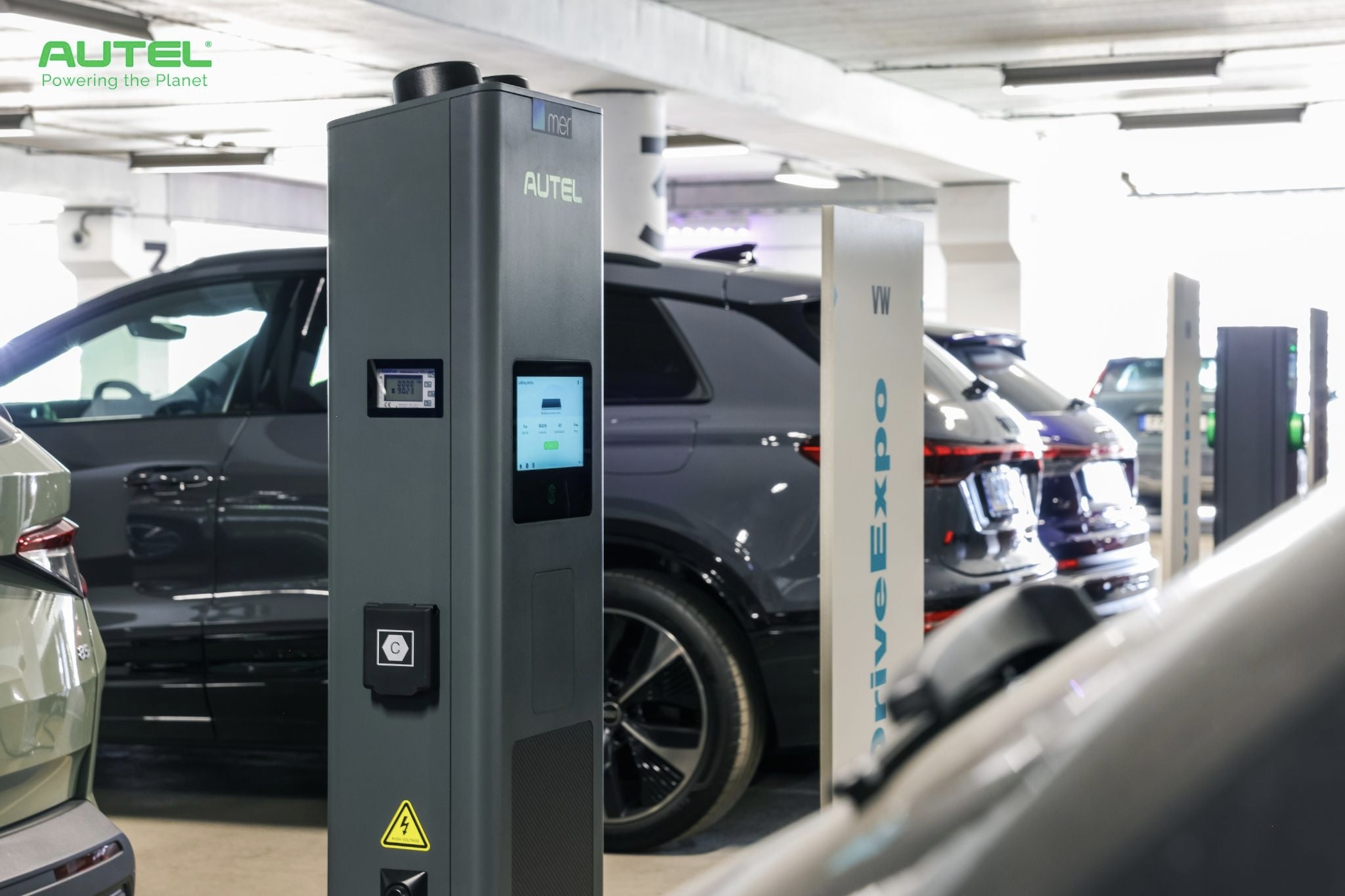

The Autel MaxiCharger AC Ultra Street is one of the fastest AC chargers in its class, delivering 22 kW per port for simultaneous charging of two vehicles, it comes in a robust floor standing unit that's perfect solution when wall-mounting isn't an option. This product is designed for fleets, shopping centers, and business premises, it redefines efficient and affordable dual-port AC charging solution.

Instructions & Datasheets

Datasheet

Installation & Operation Manual

Commissioning Guide

User Manual

Autel Config App Installer User Guide

Autel Charge App Home User Guide

Features

Dual 22kW Output: Charge two EVs at the same time with dynamic power sharing (2 x 22kW).

Type 2 Socket Connections: Universally compatible with all modern electric vehicles.

8" HD Touchscreen: Intuitive interface with potential for branding or advertising.

Smart Connectivity: Ethernet, WiFi, Bluetooth, RS485 and 4G for remote management.

OCPP-Ready: Supports OCPP 1.6J (upgradable to 2.0.1) for backend system integration.

Rugged Outdoor Design: IP55, C5-M and IK10 rated – built to handle Australian outdoor conditions.

Advanced Safety: Integrated AC 30mA + DC 6mA RCD, surge protection and PME (UK).

Plug & Charge Capable: ISO 15693 and ISO14443, ready for automatic, secure authentication with compatible vehicles.

Power Monitoring: Build-In MID certified power meter for accurate power monitoring and billing purposes.

Future-Proof Charging: Supports OTA firmware updates, dynamic load management and billing systems.

Specifications

Weight: ~30kg

Dimensions (H,W,D): 1467mm x 310mm x 200mm

Charging mode: Type 2

Input/output power rating and current: Three phase up to 2x22kW/32A

Input/output voltage: 400V±15%, three phase

Connector type: IEC 62196 type 2 socket with shutter

Internal RCD: Type A + DC 6mA

Protection: Overcurrent, overvoltage, undervoltage, integrated surge protection

Card reader (Optional): ISO 15693, ISO 14443

Power Meter and measurement accuracy: +/- 1.0%, Build-In MID Certified Meter

IP and IK rating: IP55 and IK10

Operating altitude: 2000m

Operating temperature range: -30 degree celsius ~ +50 degree celsius

Storage temperature range: -30 degree celsius ~ + 70 degree celsius

Mounting: Floor standing

User interface: Autel Charge APP

Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G Connection, CAN, RS485 for energy meter connection

Communication protocols: OCPP 1.6J

User authentication: APP, RFID card

Safety and compliance: IEC 61851-1, IEC 62311, IEC 62479, IEC 62955, IEC 61439-1/ -7

Certification: CE (TUV)

Returns & Warranty

This product is backed by a 3-year warranty.

Refer to the warranty terms here.

Read the JET Charge returns policy here.

Shipping

We dispatch all AC chargers, cables and small accessories on the same day or the next business day after you order. Shipping from Melbourne. Shipping fees will apply at checkout.
