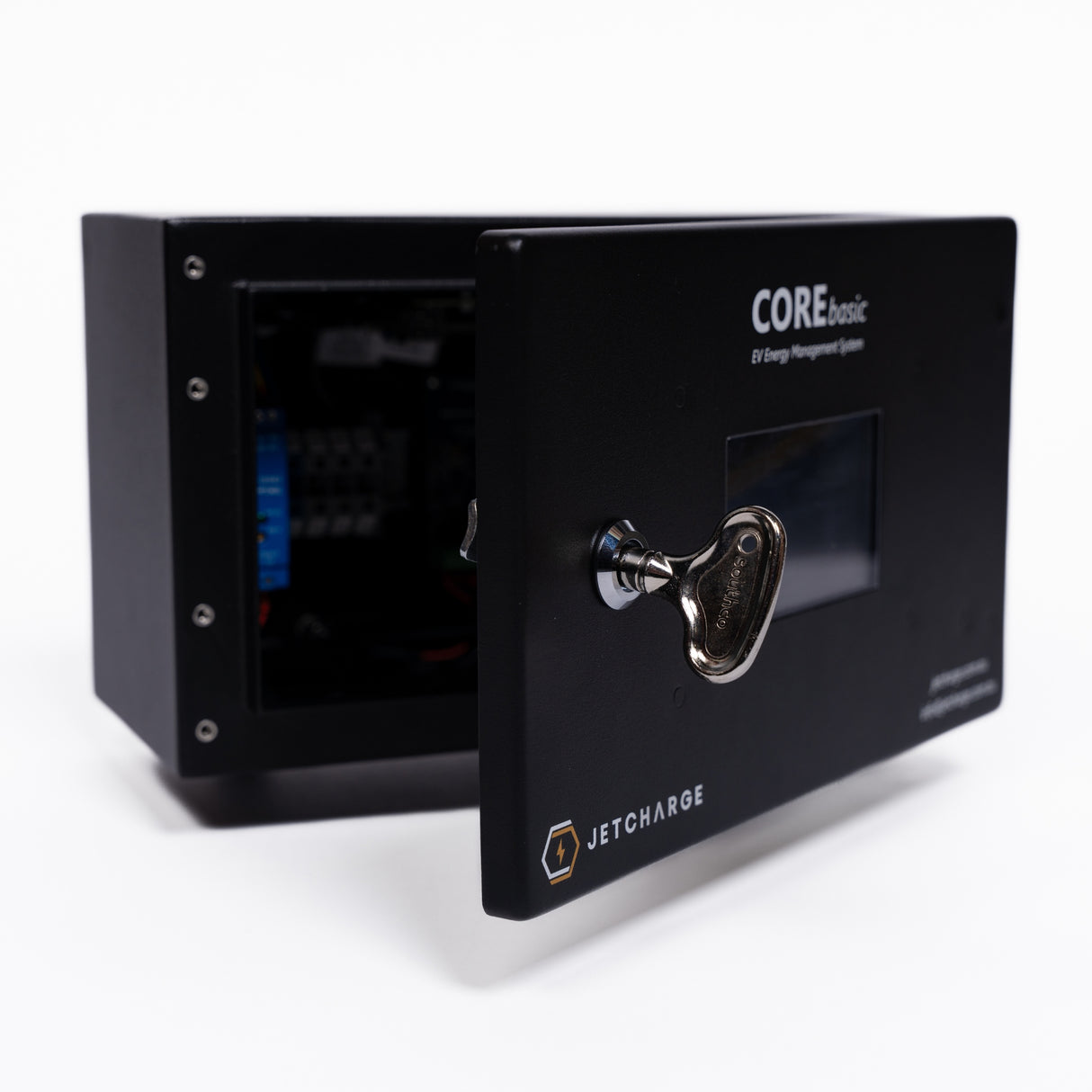

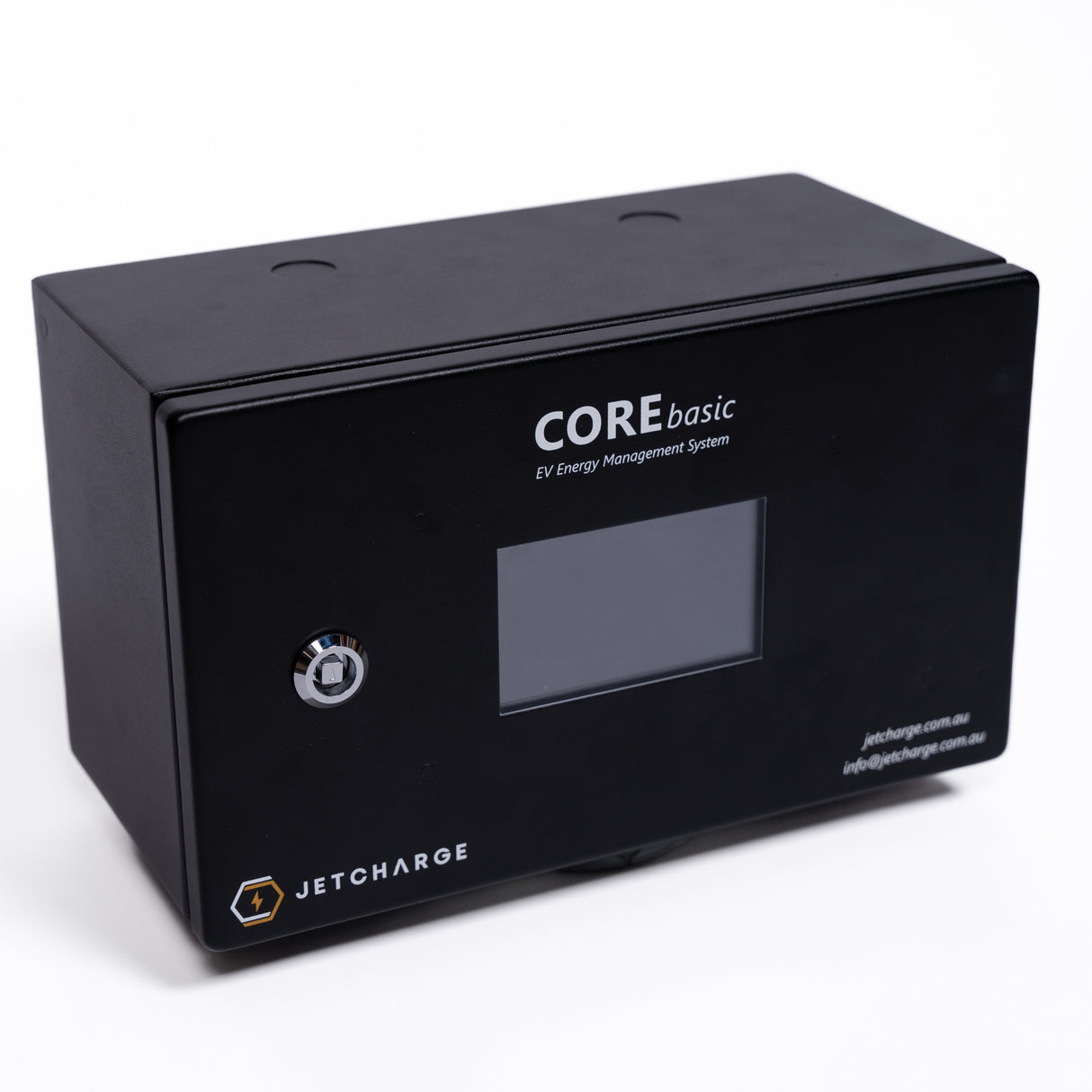

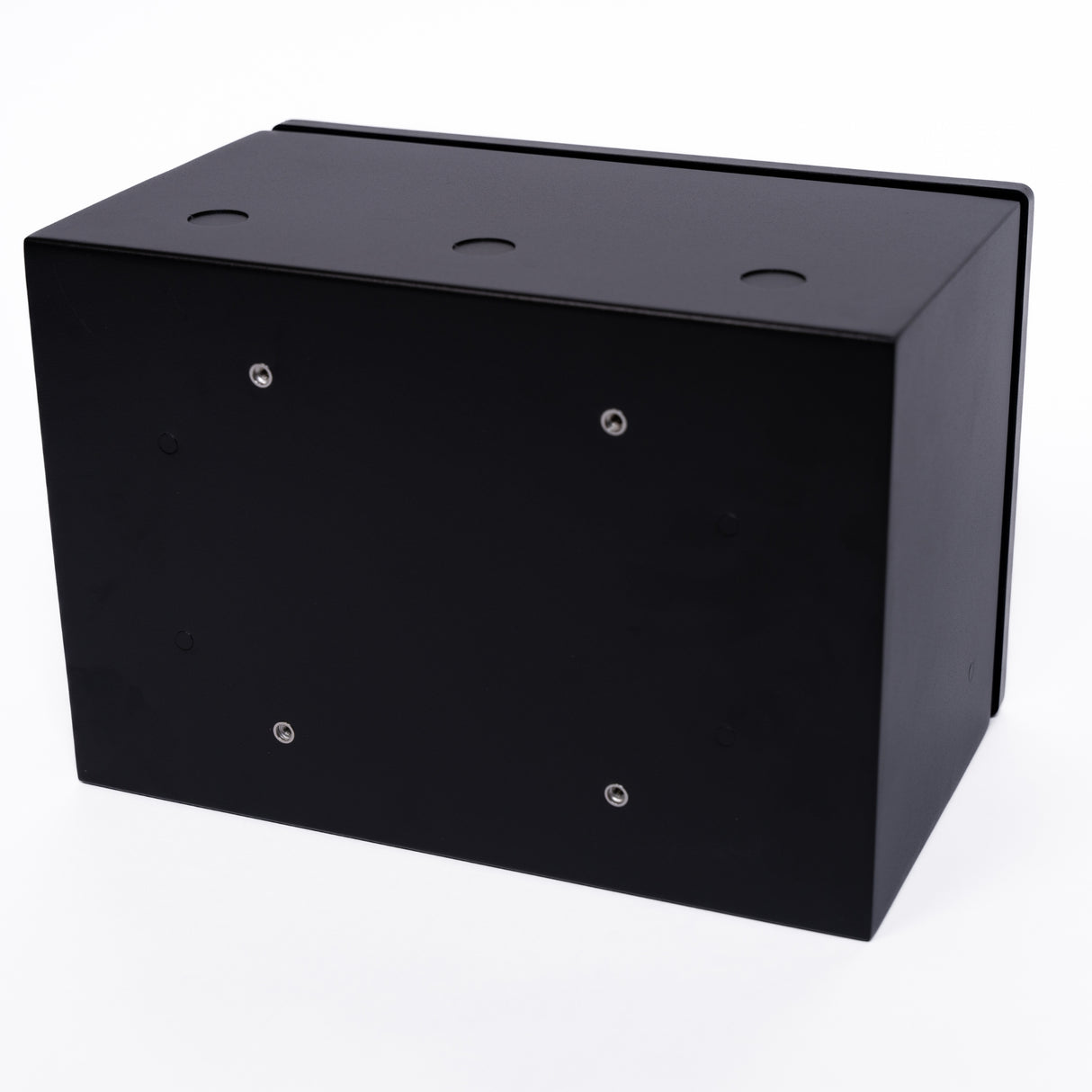

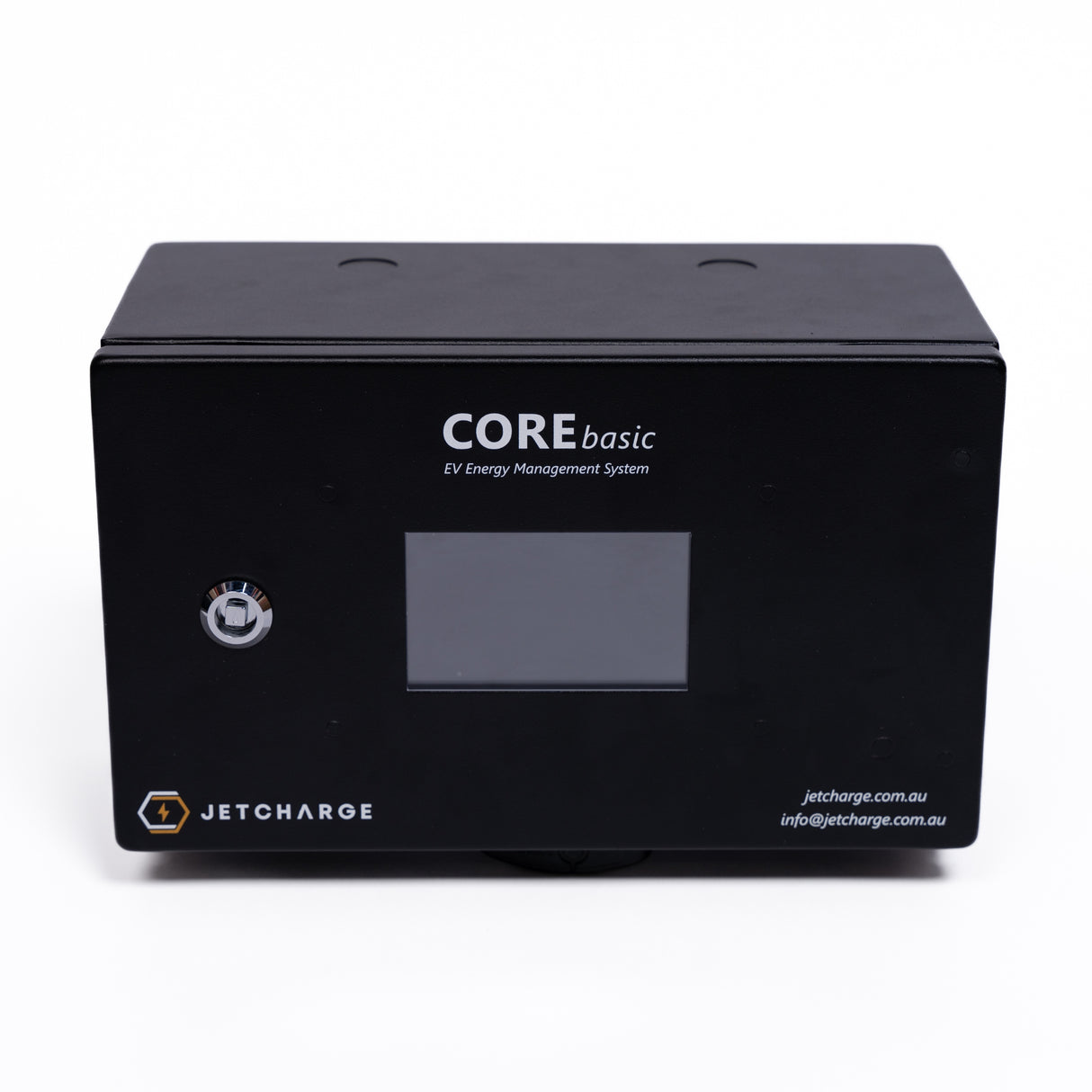

CORE Basic | EV Load Management System

Name: CORE Basic | EV Load Management System
Brand: JET Charge
SKU: JCACR000001142
Availability: InStock

Barcode: COREBASIC

Delivery time varies; see Product Detail Page

Electrician Only

Product Overview

Smarter EV Load Management with JET Charge CORE Basic

JET Charge CORE Basic provides static EV load management, optimizing charging operations while maintaining electrical safety at individual distribution boards. Designed for businesses and multi-unit residential buildings, it is easy to install, highly reliable, and perfect for sites requiring single-zone load control.

CORE Basic must be installed within 3 m of the distribution board it controls. If you need multi-zone load management, consider JET Charge CORE Mini.

What Comes with CORE Basic

External 4G modem and SIM card for reliable connectivity.
In-built power meter and CTs rated up to 250 A (choose CORE Mini if load exceeds this).
Engineering Services design feedback included after purchase; pre-purchase support available via Sales team.
Commissioning via JET Charge’s Illuminate cloud platform (access provided upon purchase).
Free CORE subscription for the first year included with connected chargers: $100 ex GST per port per year after the first year
Client Agreement Required: The CORE Subscription Terms must be provided to the end customer as part of your installation quote and proposal, and the signed agreement must be submitted back to us before activation. Access form here.

New to the EV industry and working on your first projects? We’re here to help.

We now offer comprehensive EV engineering system design services for both AC charger networks and DC charger networks. Our team ensures your projects meet the highest standards of safety, efficiency, and scalability.

Don’t hesitate to reach out to us for expert guidance and tailored solutions.

Instructions & Datasheets

CORE Basic Datasheet

CORE Basic Installation Manual

JET Charge CORE Subscription Terms

JET Charge CORE Subscription Terms (End Customer In-take Form)

Partner Store Terms of Sale: JET Charge CORE EV Charging Load Management System

CORE Configuration in Illuminate

Features

Tailored Charging: Ideal for managing small to medium-scale EV installations, catering to residential complexes, small businesses, and fleet management.

Seamless Installation: Quick setup with easy-to-follow instructions, ensuring a smooth integration into your project’s electrical infrastructure. Must be installed within 3m of the distribution board it is load controlling.

Static Load Management: Monitors and adjusts the EV charging load across multiple chargers, providing an optimised charging experience.

Durable Design: IP54-rated protective enclosure allows for indoor and outdoor installation, providing robustness in a variety of environments.

Integrated Connectivity: Includes ethernet connectivity and external 4G modem for remote access and continuous system updates for ongoing support.

Simple Operation: LCD display and intuitive controls enable straightforward system monitoring and adjustments without specialised expertise

Specifications

Mechanical & Environmental Specs:

Dimensions (H × W × D): 190 mm × 284 mm × 142 mm
Net Weight: 4.6 kg
Mounting Location: Indoor or Outdoor
Ambient Operating Temperature: -25°C to +40°C
Ambient Storage Temperature: -40°C to +70°C
Relative Humidity: 5–95%
Ingress Protection: IP54
Impact Protection: IK08
Standard Finish: Black
Internal Power Meter: Yes

Electrical Specs:

Rated Power: 60 W
Rated Current: Up to 0.2 A maximum
Rated Supply Voltage: 415 VAC ±10%
Poles Description: L1, L2, L3, N, PE
Rated Frequency: 50 Hz / 60 Hz
Over Current Protection: 6 A
Earth Leakage Protection: Dedicated 30 mA Type A RCD required on supply circuit
Available RJ45 Network Switch Ports: 5 (default), 8 (extended)
Maximum Reference Points: 1

User Interface & Control:

Display: 1 × LCD Screen (5”)
Communication Protocols: OCPP 1.6J & JCPP Proprietary Protocol for CORE
Communication Interfaces: Ethernet, MODBUS TCP Server
Functions Available: Optimised Scheduled Charging, Local Dynamic Load Management
Connectivity: External 4G modem and SIM included.

Returns & Warranty

This product is backed by a 3-year warranty.

JET Charge CORE Warranty Statement.

Read the JET Charge returns policy here.

Shipping

This product is available through our special order service. Each unit is sourced, tested, and configured for your needs before dispatch. Delivery times may vary depending on availability and handling requirements. We will keep you informed throughout the process.
