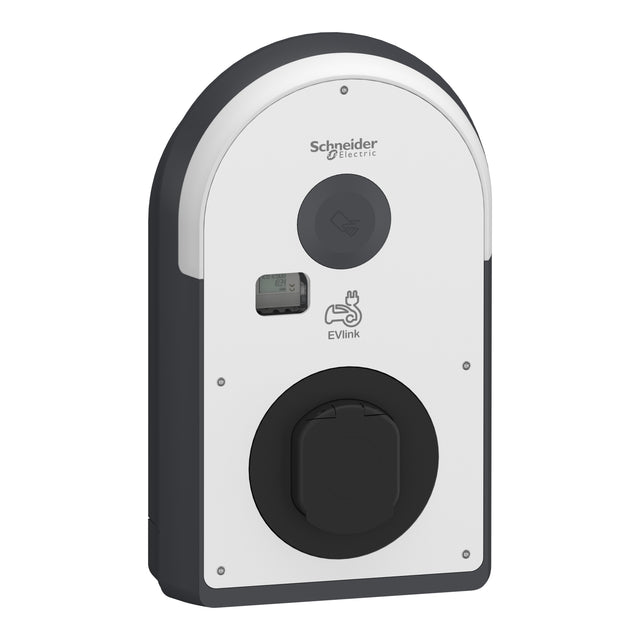

Schneider EVlink Pro AC | 22 kW | Three Phase | Socket | With In-Build MID Meter

Name: Schneider EVlink Pro AC | 22 kW | Three Phase | Socket | With In-Build MID Meter
Brand: Schneider
SKU: SCSAC022000463
Availability: InStock

Barcode: EVB3S22N40M

$3,008.00 (Ex.GST)

RRP (Ex.GST): $3,008.00

Delivery time varies; see Product Detail Page

We offer pre-commissioning services for this product.

Product Overview

Power up your electric vehicle with the Schneider EVlink Pro AC MID-certified charging station.

Power up your electric vehicle with the Schneider EVlink Pro AC MID-certified charging station. Designed for apartment complex, commercial, and public applications, it delivers fast 22 kW AC charging through a Type 2 socket and integrated MID energy meter for accurate billing. Advanced safety features include RDC-DD 6 mA protection, robust IP55 weatherproofing, and IK10 impact resistance for reliable indoor or outdoor performance.

The EVlink Pro AC charging station meets Secure Operational Critical Communications Infrastructure (SOCCI) requirements, ensuring robust cybersecurity and secure data exchange for critical energy applications.

What is an MID meter?

MID stands for Measuring Instruments Directive, a European standard that ensures energy meters meet strict accuracy and reliability requirements for billing purposes. A MID-certified meter guarantees compliance with legal metrology standards, making it suitable for commercial transactions.

Why is it equivalent to NMI?

In Australia, the National Measurement Institute (NMI) sets similar standards for measurement accuracy and compliance. MID certification is recognized as equivalent because both frameworks ensure meters are tested, verified, and approved for use in financial transactions, providing confidence in fair and accurate billing.

If you require additional features such as mounting the charger on a pedestal, connecting the charger with a 4G modem, or simply need an additional compatible power meter, be sure to check out the Schneider EVlink Pro AC Accessory Collection.

This product is available through our special order service. Estimated minimum lead time: **4 weeks**, including sourcing, testing, and configuration to meet your requirements before dispatch. Lead times may vary based on order quantity, supplier availability, and the type of pre-commissioning work. We will keep you updated throughout the process.

Instructions & Datasheets

EVlink Pro AC 22 kW Socket with MID Spec Sheet

EVlink Pro AC Installation Guide (How to video)

EVlink Pro AC 4G Modem Installation Guide

EVlink Pro AC Preventative Maintenance Guide

Features

SOCCI-Compliant Security: Ensures the charging station meets Secure Operational Critical Communications Infrastructure standards, providing robust cybersecurity and secure data exchange for critical energy applications

Fast Charging Power: 22 kW three-phase output for quick and efficient EV charging.

MID-Certified Accuracy: Integrated MID energy meter for precise consumption tracking and compliant billing.

Smart Connectivity: Ethernet, Bluetooth, and OCPP 1.6 support for remote management and network integration.

Enhanced Safety: Built-in RDC-DD (6 mA) and advanced protection for secure charging operations.

Durable Design: IP55 weatherproof and IK10 impact-resistant housing for reliable indoor/outdoor use.

Access Control: RFID authentication for secure user access and usage monitoring.

Specifications

Mechanical & Environmental Specs

Mounting Options: Wall-mounted / Floor-standing (pedestal or kit enclosure)
Dimensions (H × W × D): 529 mm × 317 mm × 158 mm
Net Weight: 7.2 kg
IP Degree of Protection: IP55
IK Degree of Protection: IK10
Operating Temperature: -30°C to +45°C
Storage Temperature: -40°C to +80°C
Relative Humidity: 5–95%
Operating Altitude: Up to 2000 m without derating

Electrical Specs

Output Power: 22 kW, Three Phase
Rated Current: 32 A
Rated Supply Voltage: 220–240 V AC, 50/60 Hz
Socket Type: Type 2
Protection Device: RDC-DD (Residual Direct Current Detection) – 6 mA
MID Compliance: Integrated MID meter (Directive 2014/32/EU)
Standards: EN/IEC 61851, EN/IEC 62196-1EN/IEC 62196-2:ed.1, EN61000-6-2:2019, EN 61000-6-3:2007, ISO 15118

User Interface & Control

Communication Protocol: OCPP 1.6 (JSON smart charging)
Communication Interfaces: Ethernet (2 × RJ45), Bluetooth, Optional 3G/4G modem, Modbus TCP
Access Control: RFID Badge (ISO/IEC 14443 A/B, ISO/IEC 15693), NFC (Type 1, 2, 4, 5; 13.56 MHz), Free access
Local Signalling: Green LED (Available), Blue LED (Charging), Red LED (Fault)
Control Type: Remote control capability

Returns & Warranty

Schneider Electric products come with a 24-month (2-year) warranty from the delivery date.

For more details, refer to the warranty terms in section 8 here.

Read the JET Charge returns policy here.

Shipping

This product is available through our special order service. Each unit is sourced, tested, and configured for your needs before dispatch. Delivery times may vary depending on availability and handling requirements. We will keep you informed throughout the process.
