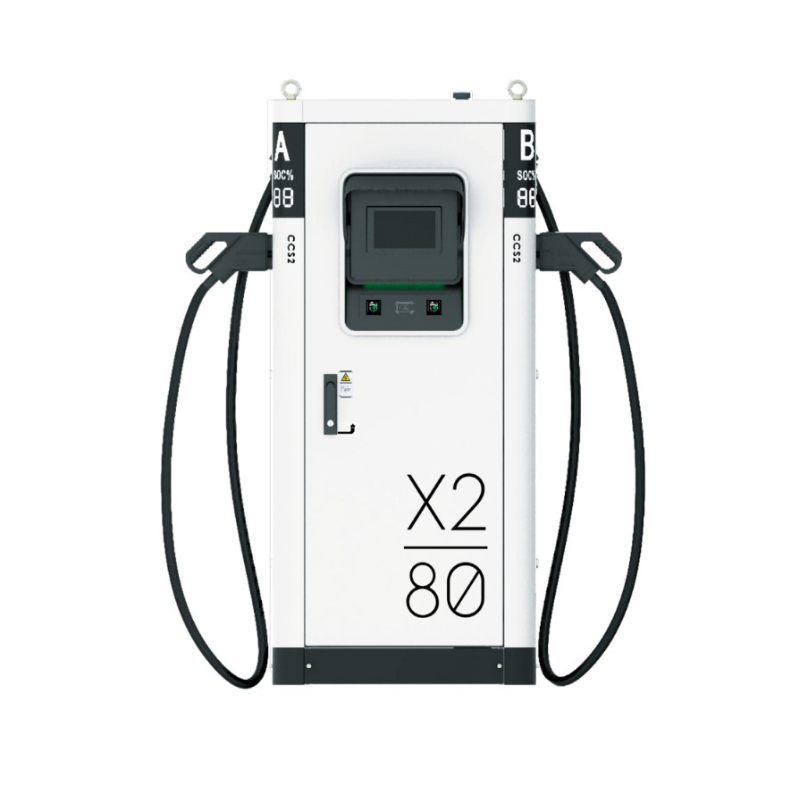

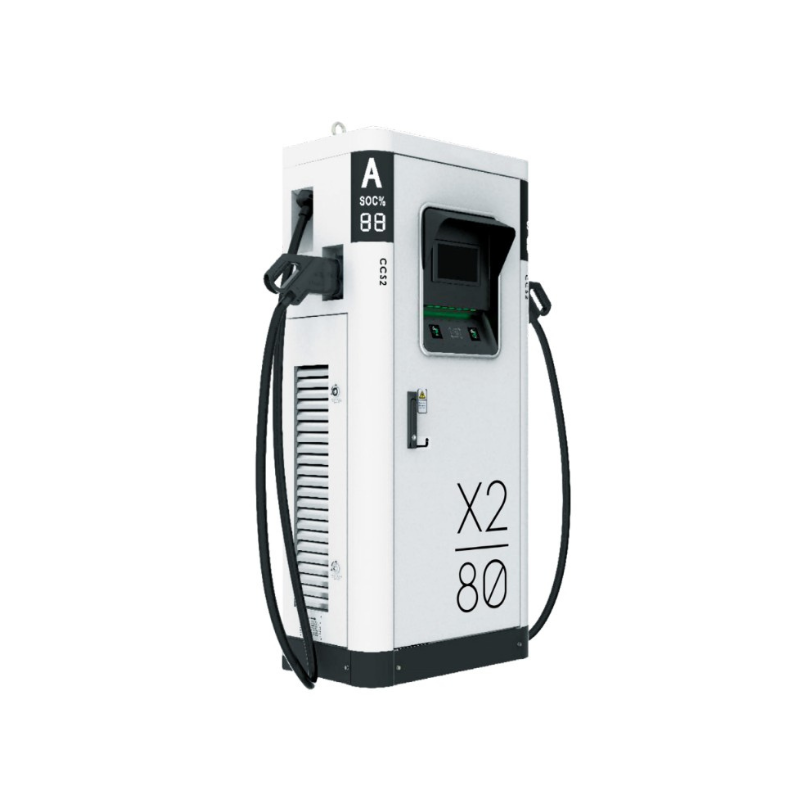

X280 DC Charger | 60kW | Dual CCS2 Ports | 4.5m Cable

Name: X280 DC Charger | 60kW | Dual CCS2 Ports | 4.5m Cable
Brand: X280
SKU: JCADC060001650-PCNS
Availability: InStock

Barcode: X280-F2-EU60-CC

Delivery time varies; see Product Detail Page

Warranty Extension

X280 60 kW DC Charger with Standard Warranty X280 60 kW DC Charger + 2 Years Extended Warranty X280 60 kW DC Charger + 3 Years Extended Warranty

Product variants

Electrician Only

Product Overview

Upgrade your power solution with the X280 30kW — where performance meets reliability.

Unlock superior power and efficiency with the X280 60kW. Purpose-built for high-demand commercial and industrial environments, the X280 60kW delivers exceptional performance, reliability, and advanced features to support your most critical energy requirements.

Need extra reassurance for peace of mind? X280 currently offers 2-year and 3-year warranty extensions on top of the standard warranty coverage, available for purchase. Simply select the appropriate option for this product before proceeding to checkout. Please note that warranty extensions can only be purchased at the same time as the charger. This option is not available for an existing installed charger or for a charger purchased separately.

Why Choose the X280 60kW?

Double the Power: Compared to the X280 30kW, the 60kW model delivers twice the output, making it ideal for larger operations or sites with higher energy demands.
Enhanced Scalability: Supports more simultaneous loads or faster charging times, enabling greater operational flexibility.
Future-Proof Investment: The higher capacity ensures your infrastructure is ready for future expansion or increased usage.
Advanced Cooling and Safety Features: The 60kW model includes upgraded thermal management and enhanced safety systems to maintain optimal performance at higher loads.
Same Reliable Design: Retains the robust construction, intuitive interface, and seamless integration of the 30kW model, with added power and capability.

This product is available through our special order service. Estimated minimum lead time: **13 weeks**, including sourcing, testing, and configuration to meet your requirements before dispatch. Lead times may vary based on order quantity, supplier availability, and the type of pre-commissioning work. We will keep you updated throughout the process.

Instructions & Datasheets

Installation Manual

Maintenance Manual

Spec Sheet

Backend Configuration Manual

Debugging Tool

Error code Troubleshoot

Features

High Power Output: With an impressive 60kW capacity, the X280 is engineered to support large-scale operations, providing stable and consistent energy delivery even under heavy loads.
Cutting-Edge Technology: Incorporates advanced control systems for maximum efficiency, safety, and user convenience.
Robust Construction: Constructed with high-quality materials and a durable enclosure, the X280 60kW is ideal for both indoor and outdoor installations, ensuring dependable operation in any setting.
Intuitive User Interface: Features easy-to-use controls and a clear display for straightforward operation and real-time monitoring.
Versatile Integration: Designed for compatibility with a wide range of systems and applications, the X280 60kW integrates seamlessly into your existing infrastructure.

Specifications

Mechanical & Environmental Specs

Cable Length: 4.5m
Dimensions (W×D×H): 700mm × 400mm × 1550mm
Net Weight: 190kg
Protection: IP54, IK10
Storage Temperature: -40~70℃
Operating Temperature: -25~50℃
Operating Humidity: 5%~95% (no condensation)
Altitude: ≤2000m
Cooling: Forced air cooling

Electrical Specs

Model Number: F3-EU
Rated Power: 60kW
AC Input Voltage Range: 380V (323V–460V)
AC Input Current Range: 97A (0–114A)
Grid Types: TN-S, TN-C-S, TT
Grid Connection: 3P+N+PE
DC Output Options: CCS2
DC Output Voltage Range: 150V–1000V
DC Output Current: 0–200A
Peak Efficiency: ≥95%
Power Factor (full load): ≥0.99
THDi: ≤5%
Dynamic Power Distribution: Minimum 30kW switch power

User Interface & Control

Authentication: APP, QR Code (optional), RFID
Display: 7-inch touch LCD
Connectivity: Ethernet/4G
Communication Protocol: OCPP 1.6J
Vehicle & Charger Communication: ISO 15118 / DIN 70121 - 2014

Returns & Warranty

X280 DC Chargers include a 31-month warranty from the date of purchase. Warranty extensions are available for this product, please refer to the product overview section on this page for details.

Learn more on returns policy here.

Shipping

This product is available through our special order service. Each unit is sourced, tested, and configured for your needs before dispatch. Delivery times may vary depending on availability and handling requirements. We will keep you informed throughout the process.
