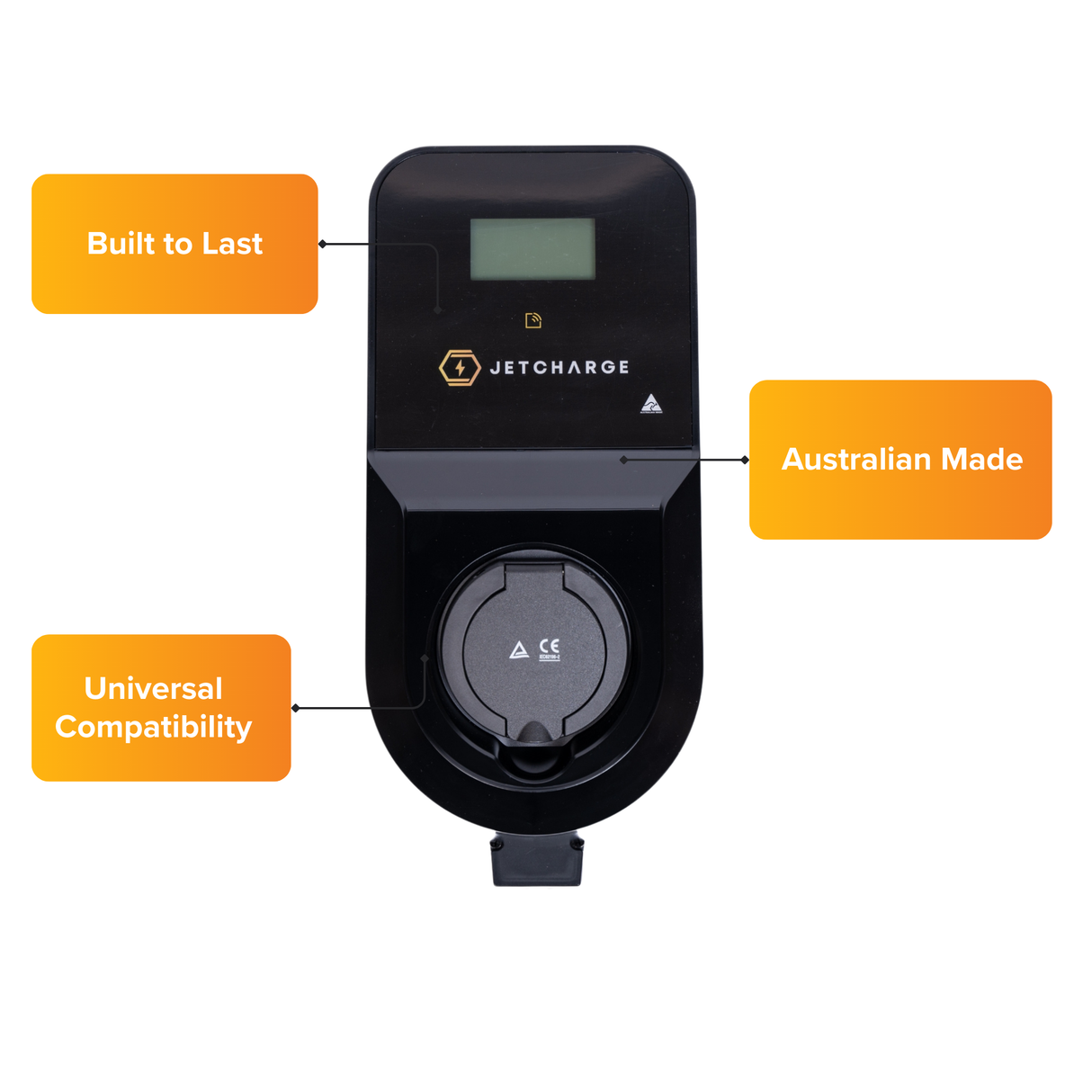

ChargeMate AC | 7kW / 22kW | Socket

Barcode: CHM3P22KW001

Product Overview

ChargeMate will no longer be available for purchase after December 2nd, 2025. Full technical support, repairs and warranty services will continue until January 31st, 2029 for units still under warranty. JET Charge remains committed to supporting every ChargeMate owner through this transition.

Click Here for more information regarding this transition.

Don't worry, we've got you covered!

If you’re looking for an AC charger that's similar to this ChargeMate, please be sure to check out the below could be the perfect fit for your needs! These amazing variants comes with Pre-comissioning options for Billing and Load Management.:

Autel Maxicharger AC | 7.4kW | Socket
Autel Maxicharger AC | 22kW | Socket
 Autel Maxicharger Premium 4G Socket

If Autel isn’t what you’re looking for, get ready! SCHNEIDER is coming to the store very SOON! Keep your eyes peeled for their arrival!

Can’t find what you’re looking for? Please don’t hesitate to contact us. Our team is here to help!

Instructions & Datasheets

Features

Home Grown: Designed and developed by EV owners for EV owners, ensuring top-notch quality from code to design.

Variable Charge Rate: Customisable charging rates to meet specific needs. Can configure for single or three phase power.

Compliance: Fully compliant with OCPP for networked smart charging, compatible with industry-standard software.

User Experience: LCD screen for live charging status, customisable based on use case.

Universal Charging: Type 2 socket compatible with all EVs in Australia; supports lead or adapter connection and optional permanent cable locking via firmware.

Solar Aware: Adjusts charge rate based on solar panel electricity generation (additional hardware required).

Premium Connectivity: Includes ethernet, Wi-Fi, RFID, Modbus capability. By default the charger is free-to-use but can be set up with RFID cards by adding 'pre-commissioning' services.

All-Weather Protection: Built for robust outdoor use with Australian design.

Power Connection: Supports single-phase and three-phase power connections.

Protection Features: IP55 rating, IK08 vandal-proof casing, LED display indication panel.

NMI Metering: Interfaces with NMI-approved meter for billing purposes, housed externally.

Current Limiting: Adjusts for sites with limited power availability. See Installation Manual in Resources section for how to adjust these settings.

Specifications

Weight: 3.0kg

Dimensions (H,W,D): 380mm x 180mm x 130mm

Rated power: 7.4kW / 22KW

Rated Current: Up to 32A maximum (7kW) / Up to 32A maximum (22kW)

Rated supply voltage: 240VAC 50Hz/60Hz (7kW) / 415VAC 50Hz/60Hz (22kW)

Charging mode: Mode 3 - Complaint to IEC 61851-1 & SAE J1772 communication protocol

Poles description: L1, N, PE (7kW) / L1, L2, L3, N, PE (22kW)

Over current protection: 40A - Single Phase 4 / 40A - Three Phase

Earth Leakage Protection: A dedicated 30mA Type A RCD must be used on the supply circuit. Integral 6mA DC leakage detection

Access Control System: RFiD (13.56MHz)

Socket Type: Type 2IEC - 62169

Local Signalling: 1 x LCD Screen: Status Indication

Communications Interfaces: Ethernet, Wi-Fi 802.11 b/g/n (2.4 GHz band only), MODBUS - RTU

Control Type: Phone App, Plug & Charge, Cloud Based

Server Communications Protocol: OCPP 1.6J

Operating Mode: Networked or Standalone

Function Available: Smart Charging, works with Local Dynamic Load Management e.g., CORE

Mounting Location: Wall or Pedestal Mount

Ambient Operation Temperature: -30 - 50 degree celsius

Ambient Storage Temperature: -20 - 85 degree celsius

Relative Humidity: 5 - 95%

Protection (Ingress Protection): IP54

Protection (Impact Protection): IK08

Standard Finish: Black

Standards: AS/NZS 4268:2017, IEC 62196-1; AS/NZS 3820, IEC 62196-2; AS/NZS 2722.2:2016, IEC 62955; AS/NZS 61000.6.3:2012

Product Certifications: IEC 61851-1; IEC 61851-21-2; IEC 60529; IEC 60335-1 Clause 30.2

Returns & Warranty

This product is backed by a 3-year warranty.

Refer to the warranty terms in section 8 here.

Read the JET Charge returns policy here.

Shipping

We dispatch all AC chargers, cables and small accessories on the same day or the next business day after you order. If you add pre-commissioning services, we endeavour to dispatch within 3 days.

Shipping from Melbourne. Shipping fees will apply at checkout.
