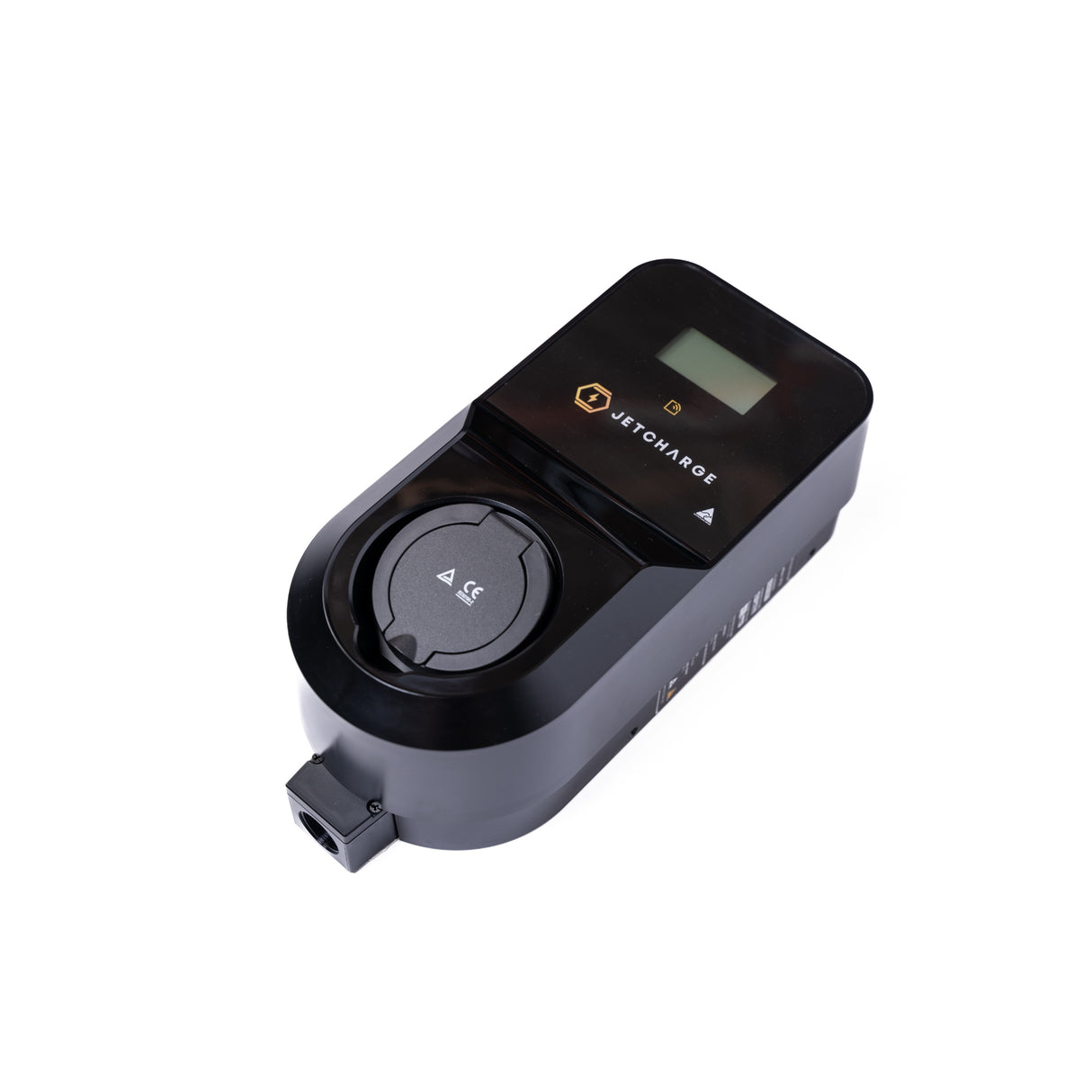

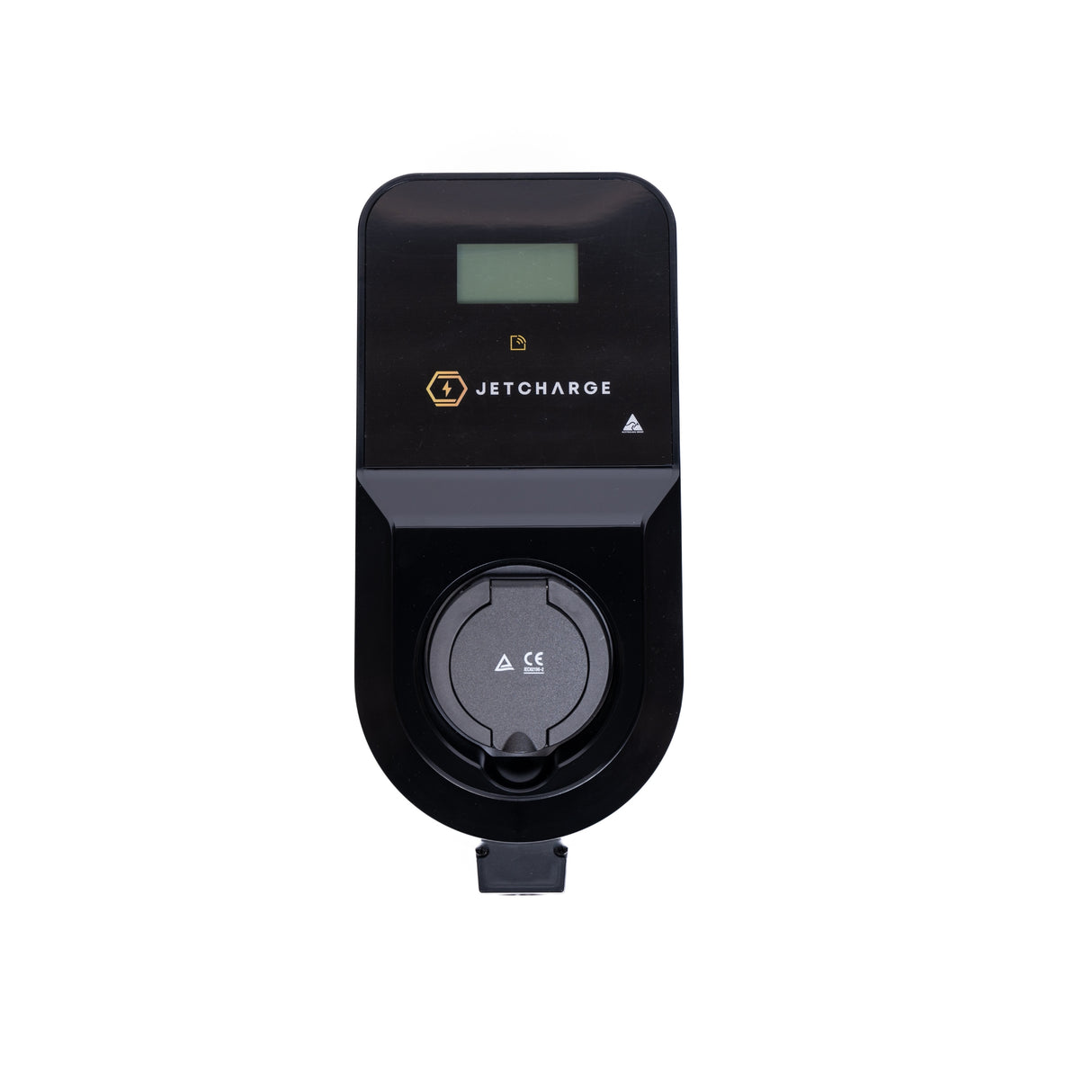

-11% off RRP | ChargeMate AC | 7kW | Socket | NMI Meter | 4G and Chargefox Pre-Commissioning | SALE

ChargeMate Specifications

ChargeMate User Manual

ChargeMate Installation Manual

ChargeMate Connect App Tutorial

Chargefox Billing Overview and Setup Guide

Home Grown: Designed and developed by EV owners for EV owners, ensuring top-notch quality from code to design.

Variable Charge Rate: Customisable charging rates to meet specific needs.

Compliance: Fully compliant with OCPP for networked smart charging, compatible with industry-standard software.

User Experience: LCD screen for live charging status, customisable based on use case.

Universal Charging: Type 2 socket compatible with all EVs in Australia; supports lead or adapter connection and optional permanent cable locking via firmware.

Premium Connectivity: Includes an internal 4G modem with a Chargefox SIM for simple activation onto the Chargefox Platform. Ethernet, Wi-Fi, RFID and Modbus capability are also available. By default the charger is free-to-use but can be set up with RFID cards by adding 'pre-commissioning' services.

All-Weather Protection: Built for robust outdoor use with Australian design.

Power Connection: Supports single-phase and three-phase power connections.

Protection Features: IP55 rating, IK08 vandal-proof casing, LED display indication panel.

NMI Metering: Interfaces with NMI-approved meter for billing purposes, housed internally.

Current Limiting: Adjusts for sites with limited power availability. See Installation Manual in Resources section for how to adjust these settings.

Weight: 3.0kg

Dimensions (H,W,D): 380mm x 180mm x 130mm

Rated power: 22KW

Rated Current: Up to 32A maximum (22kW)

Rated supply voltage: 415VAC 50Hz/60Hz (22kW)

Charging mode: Mode 3 - Complaint to IEC 61851-1 & SAE J1772 communication protocol

Poles description: L1, L2, L3, N, PE (22kW)

Over current protection: 40A - Three Phase

Earth Leakage Protection: A dedicated 30mA Type A RCD must be used on the supply circuit. Integral 6mA DC leakage detection

Access Control System: RFiD (13.56MHz)

Socket Type: Type 2IEC - 62169

Local Signalling: 1 x LCD Screen: Status Indication

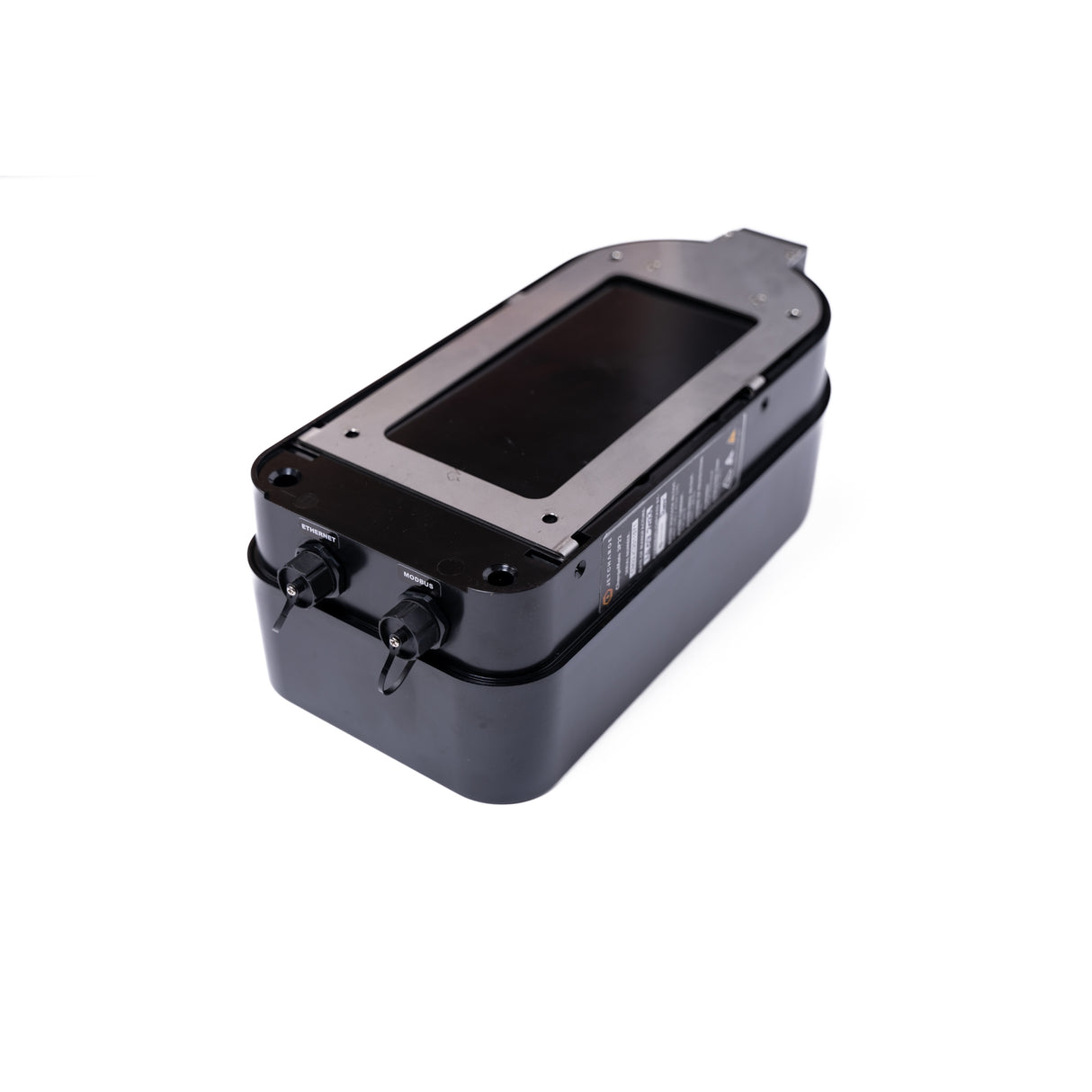

Communications Interfaces: Internal 4G modem, Ethernet , Wi-Fi 802.11 b/g/n (2.4 GHz band only), MODBUS - RTU

Control Type: Phone App , Plug & Charge, Cloud Based

Server Communications Protocol: OCPP 1.6J

Operating Mode: Networked or Standalone

Function Available: Smart Charging, works with Local Dynamic Load Management e.g., CORE

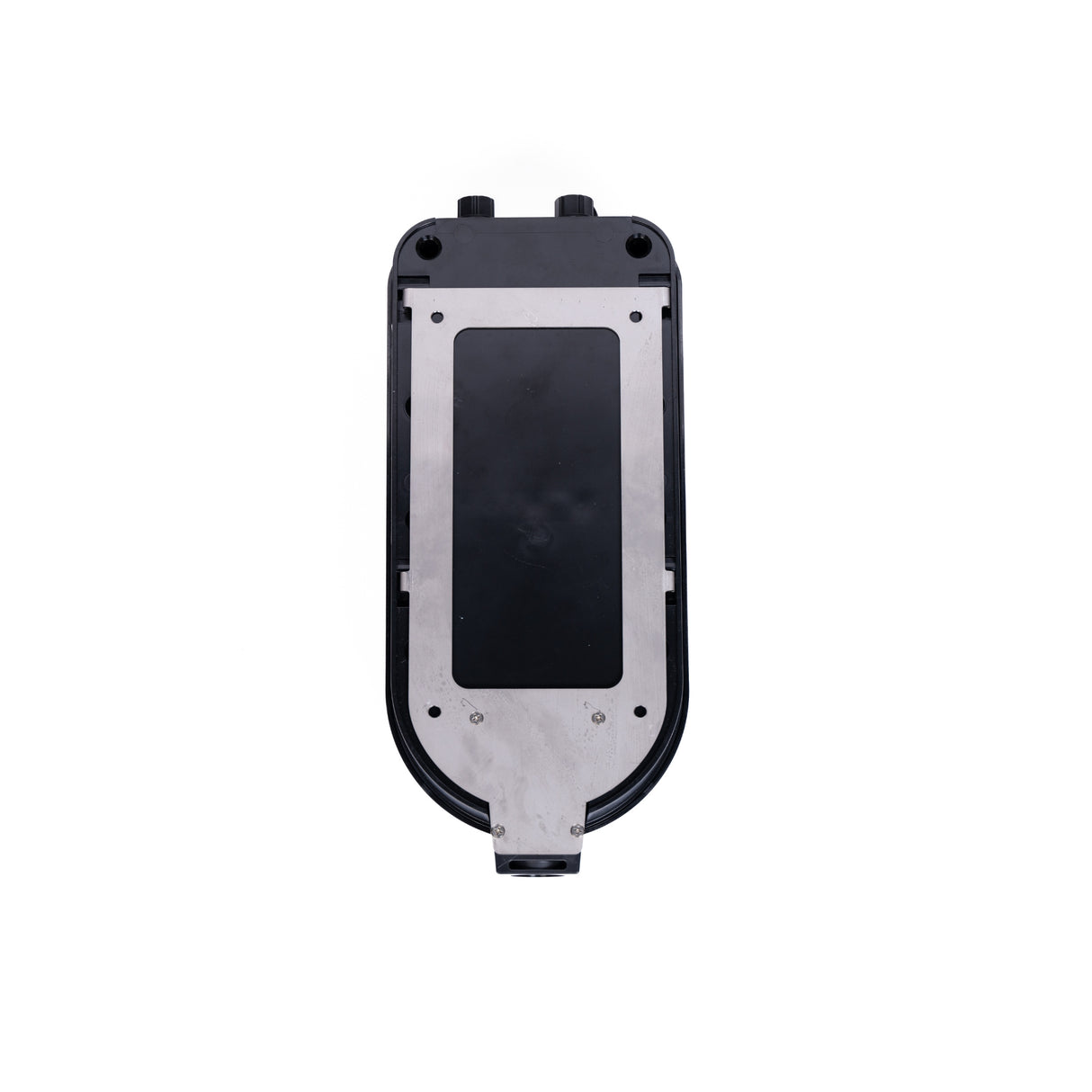

Mounting Location: Wall or Pedestal Mount

Ambient Operation Temperature: -30 - 50 degree celsius

Ambient Storage Temperature: -20 - 85 degree celsius

Relative Humidity: 5 - 95%

Protection (Ingress Protection): IP54

Protection (Impact Protection): IK08

Standard Finish: Black

Standards: AS/NZS 4268:2017, IEC 62196-1; AS/NZS 3820, IEC 62196-2; AS/NZS 2722.2:2016, IEC 62955; AS/NZS 61000.6.3:2012

Product Certifications: IEC 61851-1; IEC 61851-21-2; IEC 60529; IEC 60335-1 Clause 30.2

This product is backed by a 3-year warranty.

Refer to the warranty terms in section 8 here.

Read the JET Charge returns policy here.

We endeavour to dispatch within 3 days to allow time for pre-commissioning to Charegfox. This will be delayed if your client is not already approved as a Chargefox Site Host: follow these instructions.

Shipping from Melbourne. Shipping fees will apply at checkout.

More on Shipping.
