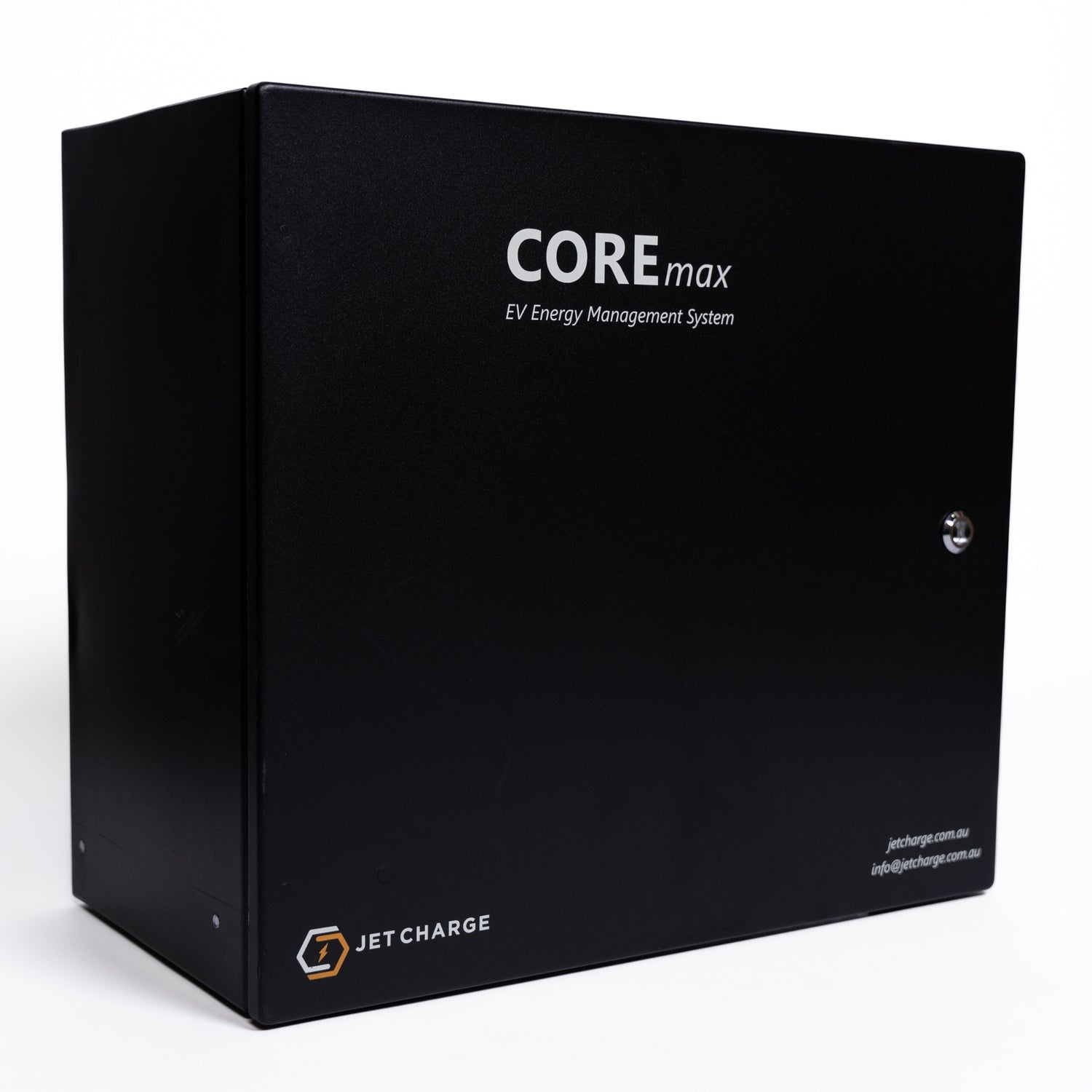

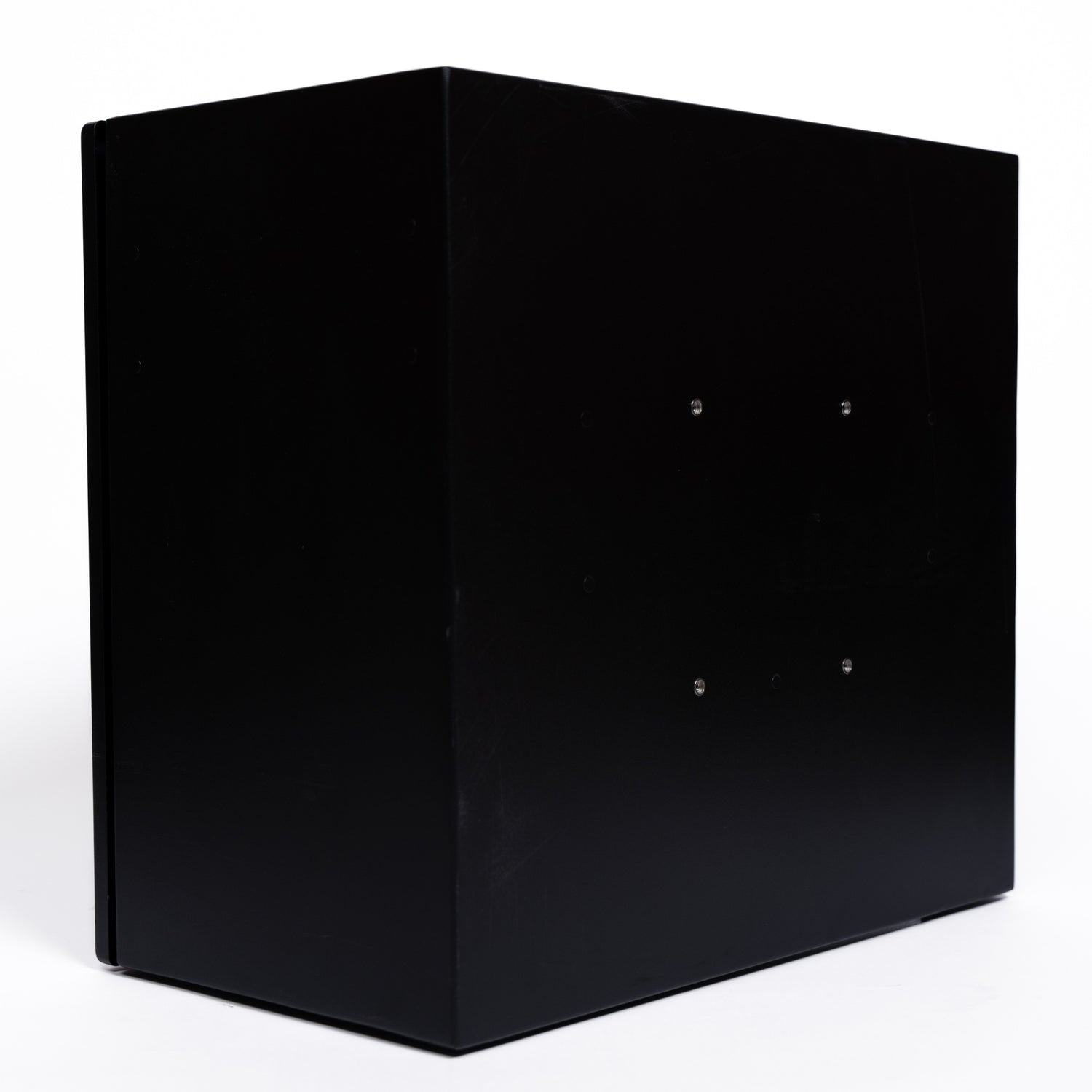

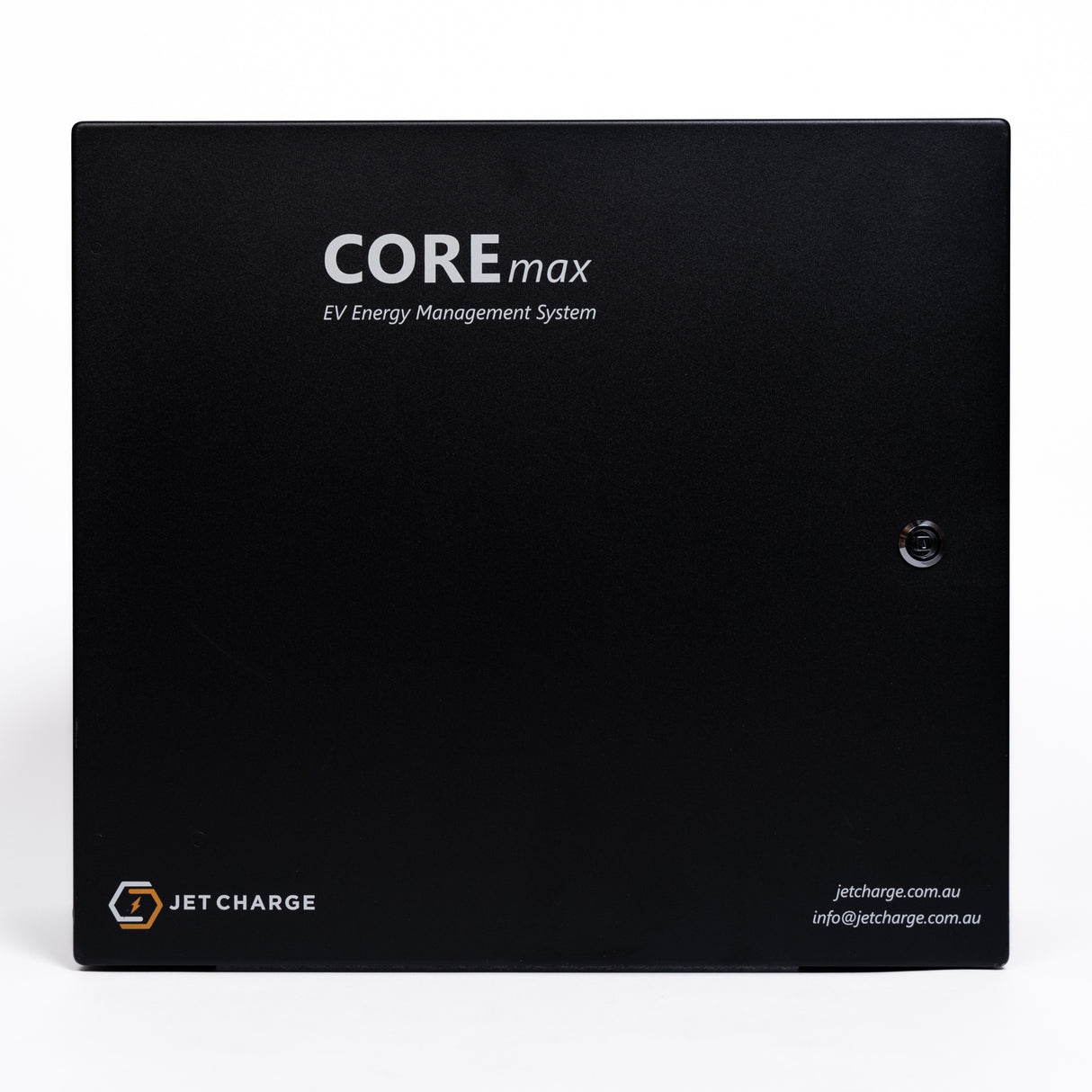

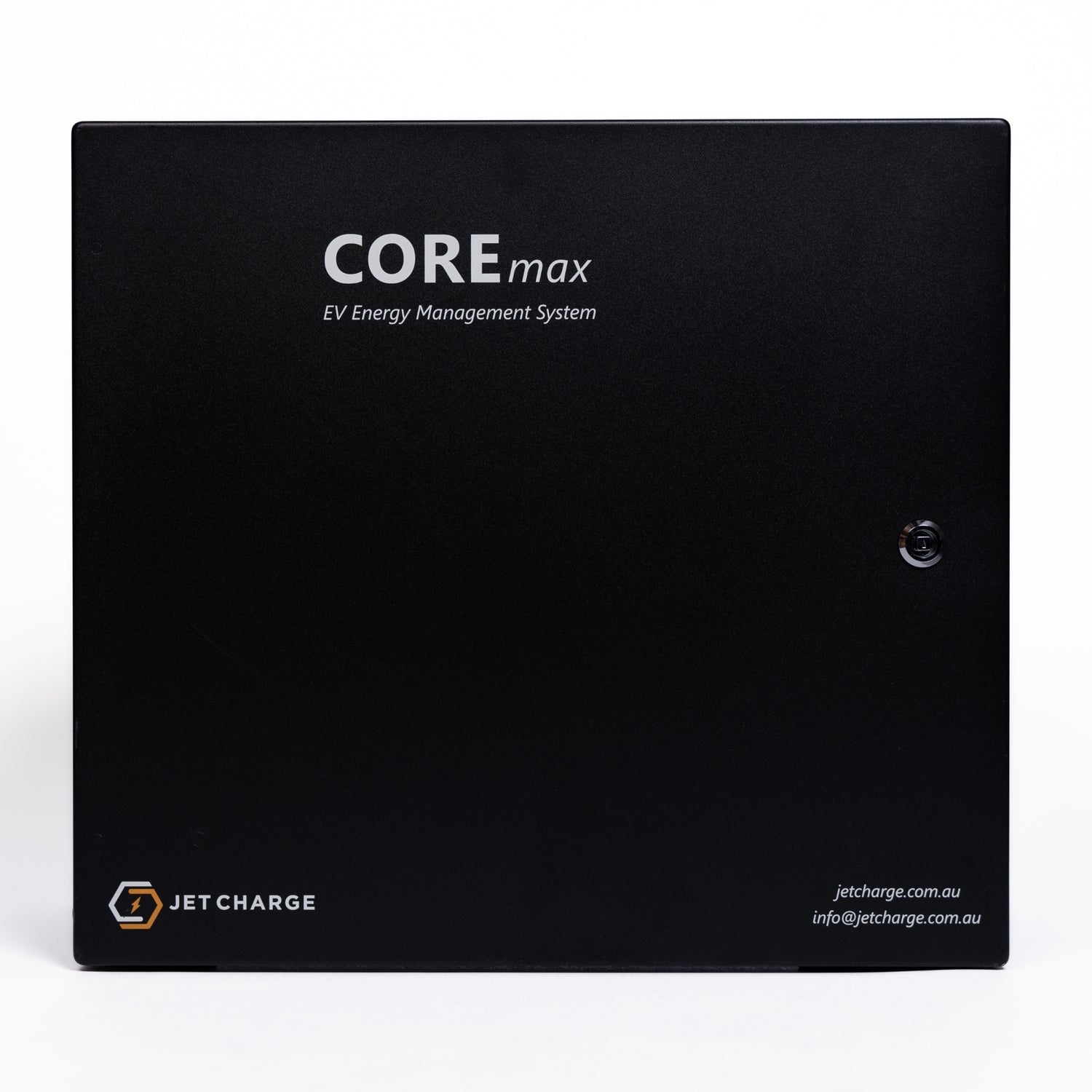

CORE Max | EV Load Management System

Name: CORE Max | EV Load Management System
Brand: JET Charge
SKU: JCACR000001145
Availability: InStock

Coming Soon!

We're so excited about our upcoming releases that we just couldn't keep them under wraps anymore! Sign up below to get notified when it's good to go.

Product Overview

Smarter EV Load Management with JET Charge CORE MAX

JET Charge CORE Max is the ultimate load management solution for large-scale and complex sites. It offers advanced dynamic load control, optimized scheduling, and seamless integration with BMS/EMS systems for holistic energy management. Perfect for commercial fleets, multi-site operations, and high-capacity environments, CORE Max also supports up to 46 RJ45 network switch ports, delivering extensive connectivity for large-scale projects and organizations that require robust networking infrastructure.

What Comes with CORE MAX

External 4G modem and SIM card for reliable connectivity.
Engineering Services design feedback included after purchase; pre-purchase support available via Sales team.
Commissioning via JET Charge’s Illuminate cloud platform (access provided upon purchase).
Free CORE subscription for the first year included with connected chargers: $100 ex GST per port per year after the first year
Client Agreement Required: The CORE Subscription Terms must be provided to the end customer as part of your installation quote and proposal, and the signed agreement must be submitted back to us before activation. Access form here.

A power meter and compatible CTs are mandatory required for LMS electrical design, these are not provided in CORE MAX, click here for power meter options.

New to the EV industry and working on your first projects? We’re here to help.

We now offer comprehensive EV engineering system design services for both AC charger networks and DC charger networks. Our team ensures your projects meet the highest standards of safety, efficiency, and scalability.

Don’t hesitate to reach out to us for expert guidance and tailored solutions.

Instructions & Datasheets

CORE MAX Datasheet

CORE MAX Installation Manual

JET Charge CORE Subscription Terms

JET Charge CORE Subscription Terms (End Customer In-take Form)

Partner Store Terms of Sale: JET Charge CORE EV Charging Load Management System

CORE Configuration in Illuminate

CORE Site Wiring Diagram

Features

Tailored Charging: Ideal for managing large-scale EV installations, including commercial sites, residential complexes, and fleet operations. CORE Max also supports up to 46 RJ45 network switch ports

Dynamic Multi-Zone Load Management: Monitors electricity consumption and adjusts charging rates in real time, controlling EV load across multiple zones within a switchboard for optimized performance in complex environments.

Seamless Integration: Designed for easy installation with clear instructions, ensuring smooth integration into your electrical infrastructure.

Integrated Connectivity: Includes Ethernet connectivity and an external 4G modem with SIM for remote access, monitoring, and system updates.

Simple Operation: LCD display and intuitive controls enable straightforward system monitoring and adjustments without specialised expertise

Specifications

Mechanical & Environmental Specs:

Dimensions (H × W × D): 550 mm × 554 mm × 330 mm
Net Weight: 31.6 kg
Mounting Location: Indoor or Outdoor
Ambient Operating Temperature: -25°C to +40°C
Ambient Storage Temperature: -40°C to +70°C
Relative Humidity: 5–95%
Ingress Protection: IP54
Impact Protection: IK08
Standard Finish: Black
Internal Power Meter: No

Electrical Specs:

Rated Power: 837.2 W
Rated Current: Up to 3.64 A maximum
Rated Supply Voltage: 240v
Poles Description:1P, N, PE
Rated Frequency: 50 Hz
Over Current Protection: 6 A
Earth Leakage Protection: Dedicated 30 mA Type A RCD required on supply circuit
Available RJ45 Network Switch Ports: 24 (default), up to 46 (extended)
Maximum Reference Points: 24

User Interface & Control:

Display: 1 × TFT Screen (7”)
Communication Protocols: OCPP 1.6J & JCPP Proprietary Protocol for CORE
Communication Interfaces: Ethernet, MODBUS TCP Server
Functions Available: Optimised Scheduled Charging, Local Dynamic Load Management
Connectivity: External 4G modem and SIM included.

Returns & Warranty

This product is backed by a 3-year warranty.

JET Charge CORE Warranty Statement.

Read the JET Charge returns policy here.

Shipping

This product is available through our special order service. Each unit is sourced, tested, and configured for your needs before dispatch. Delivery times may vary depending on availability and handling requirements. We will keep you informed throughout the process.
